Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black1
Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black1 Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black2 Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black3 Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black4 Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black5

Trendnet TI-G160I-M network switch Managed Gigabit Ethernet (10/100/1000) Black

Trendnet TI-G160I-M. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE...
Manufacturers: TRENDNET INC , Trendnet
SKU: 6723678
Manufacturer part number: TI-G160I-M
UPC: 0710931162417
$434.99
  • 16 x Gigabit ports
  • 32Gbps switching capacity
  • Hardened IP30 rated metal housing

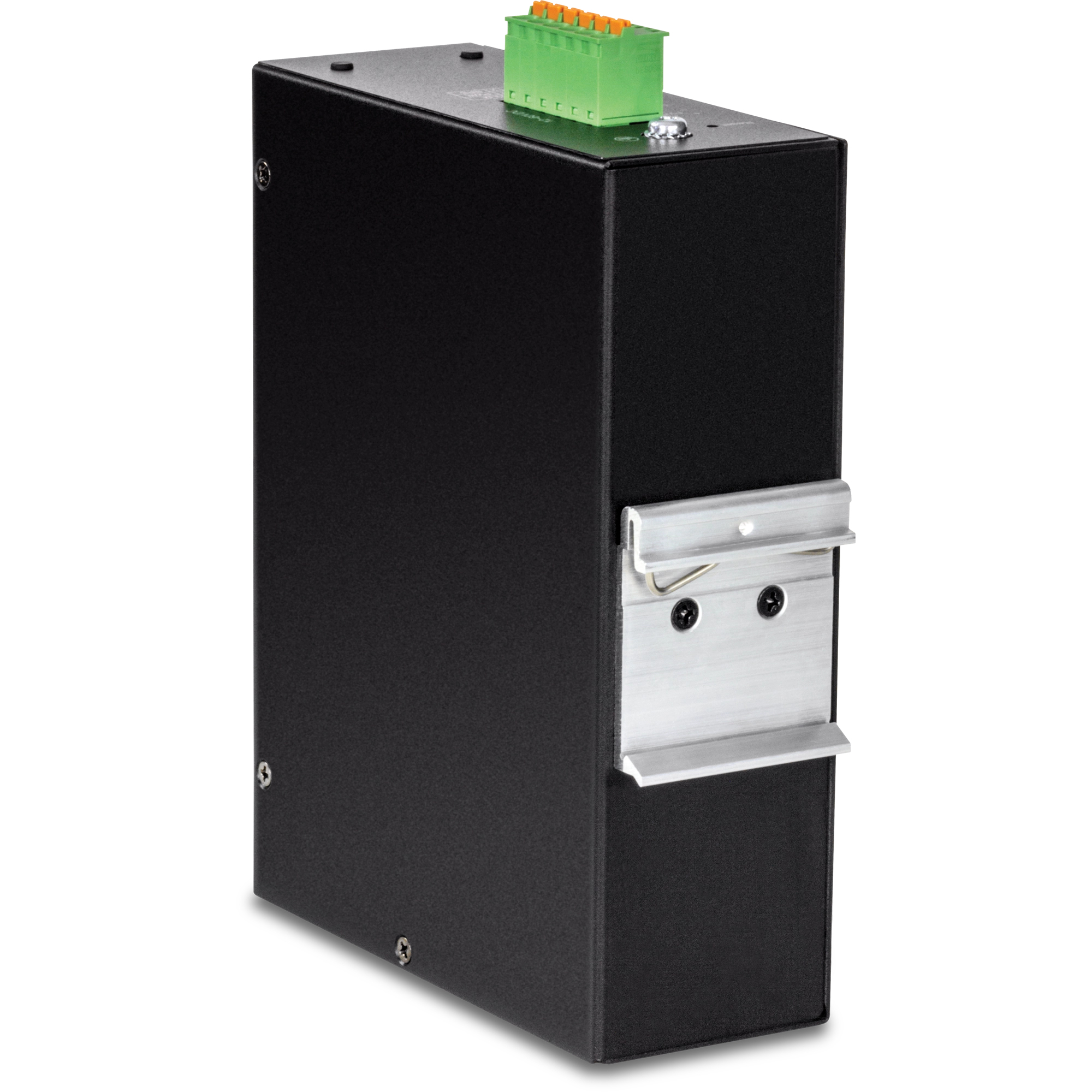

  • Includes DIN-Rail mounting bracket
  • Operating temperature range of -10° – 75° C (14° – 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port

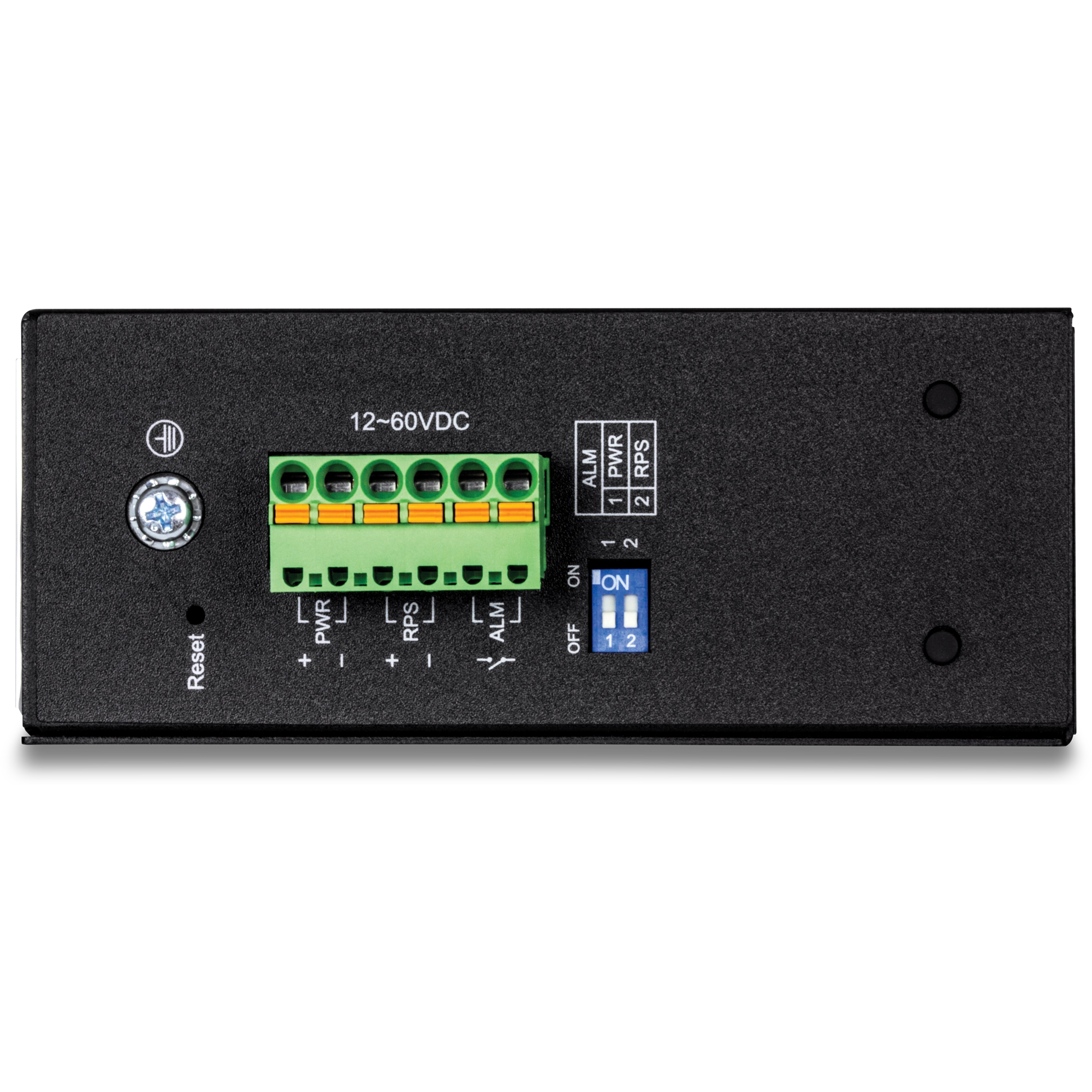

  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-M6024, TI-S12024, TI-S12048, TI-S24048, TI-S15052, TI-S24052)
  • NDAA / TAA compliant (U.S. and Canada only)
  • 16 x Gigabit ports
  • 32Gbps switching capacity
  • Hardened IP30 rated metal housing
  • Includes DIN-Rail mounting bracket
  • Operating temperature range of -10° – 75° C (14° – 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-M6024, TI-S12024, TI-S12048, TI-S24048, TI-S15052, TI-S24052)
  • NDAA / TAA compliant (U.S. and Canada only)
Products specifications
Attribute nameAttribute value
Width6.3"
Depth4.72"
Height1.97"
Weight31.2 oz
Switch TypeManaged
Power SourceDC
Switching capacity32 Gbit/s
Number of VLANs4094
Broadcast storm controlYes
Link aggregationYes
IGMP snoopingYes
Forwarding rate23.8 Mpps
BPDU filtering/protectionYes
FanlessYes
Half duplexYes
Design
CertificationCE FCC
DIN rail mountingYes
Technical details
Product colorBlack
Features
Full duplexYes
LED indicatorsYes
International Protection (IP) codeIP30
Mean time between failures (MTBF)1072674 h
Performance
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Other features
Quick start guideYes
Rack mountingNo
MAC address table8000 entries
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power
Power consumption (max)12 W
Network
Multicast supportYes
Jumbo frames supportYes
Jumbo frames10000
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresMAC address-based VLAN, Tagged VLAN
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Management features
Web-based managementYes
Protocols
Management protocolsSNMP v1, v2c, v3
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
*
*
*
Products specifications
Attribute nameAttribute value
Width6.3"
Depth4.72"
Height1.97"
Weight31.2 oz
Switch TypeManaged
Power SourceDC
Switching capacity32 Gbit/s
Number of VLANs4094
Broadcast storm controlYes
Link aggregationYes
IGMP snoopingYes
Forwarding rate23.8 Mpps
BPDU filtering/protectionYes
FanlessYes
Half duplexYes
Design
CertificationCE FCC
DIN rail mountingYes
Technical details
Product colorBlack
Features
Full duplexYes
LED indicatorsYes
International Protection (IP) codeIP30
Mean time between failures (MTBF)1072674 h
Performance
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Other features
Quick start guideYes
Rack mountingNo
MAC address table8000 entries
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power
Power consumption (max)12 W
Network
Multicast supportYes
Jumbo frames supportYes
Jumbo frames10000
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresMAC address-based VLAN, Tagged VLAN
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Management features
Web-based managementYes
Protocols
Management protocolsSNMP v1, v2c, v3
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
