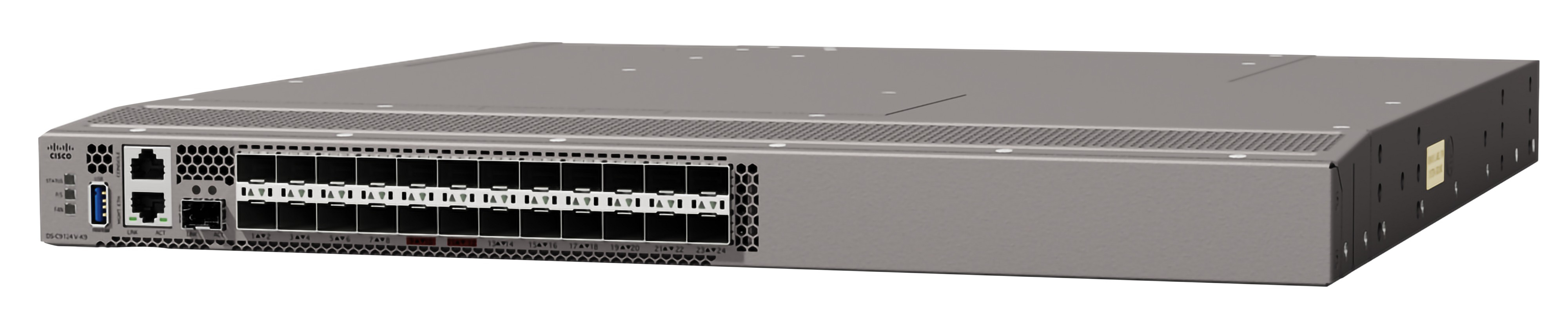

Are you looking for a high-performance Fibre Channel (FC) switch for the modern SAN? The HPE Storage Fibre Channel Switch C-Series SN6710C delivers 64 or 32 Gbps Fibre Channel switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-the-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-Series SN6710C is available with partially populated or fully populated ports with either 64 Gb or 32 Gb speeds. Additionally, investing in this switch for the lower-speed (32 Gbps) server rack gives you the flexibility to upgrade to 64 Gbps performance in the future.
What is new supporting point:
HPE Storage Fibre Channel Switch C-Series SN6710C configurations.
8 port upgrade license.
SKUs with up-front cost relief (designated by "v2" in description).
Products specifications
| Attribute name |
Attribute value |
|
Width
|
17.3" |
|
Depth
|
18" |
|
Height
|
1.72" |
|
Weight
|
18.7 lbs |
|
Switch Type
|
Managed |
|
Power Source
|
AC |
|
Installed SFP modules quantity
|
0 |
|
Installed SFP+ modules quantity
|
24 |
|
Power supply included
|
Yes |
|
SFP+ module slots quantity
|
24 |
|
Access Control List (ACL)
|
Yes |
|
SSH/SSL support
|
Yes |
|
Authentication type
|
RADIUS, TACACS+ |
|
Form factor
|
1U |
|
Number of fans
|
4 fan(s) |
|
Console port
|
RS-232 |
|
Rack mounting
|
Yes |
|
Basic switching RJ-45 Ethernet ports quantity
|
0 |
|
Basic switching RJ-45 Ethernet ports type
|
No |
|
Power consumption (typical)
|
286 W |
|
AC input frequency
|
50/60 Hz |
|
AC input voltage
|
100 - 240 V |
|
Number of power supply units
|
2 |
|
Redundant power supply (RPS) support
|
Yes |
|
Operating temperature (T-T)
|
0 - 40 °C |
|
Storage temperature (T-T)
|
-40 - 70 °C |
|
Operating relative humidity (H-H)
|
10 - 90 % |
|
Storage relative humidity (H-H)
|
10 - 95 % |
|
Operating altitude
|
-2362.2 - 78740.2" |
|
Management protocols
|
SNMP v3 |
|
Power over Ethernet (PoE)
|
No |
