TAOGLAS USA INC.

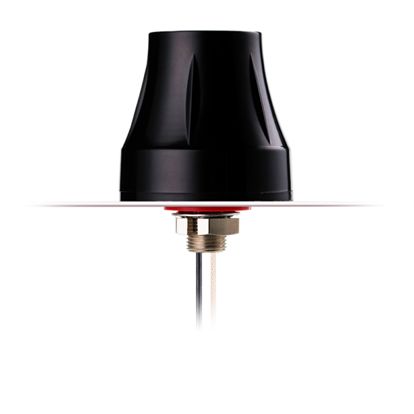

Taoglas MA140.A.LB.001. Antenna gain level (max): 3.61 dBi, Frequency band: 0.698 - 2.7 GHz, Impedance: 50 Ω. Antenna connector type: SMA, Connector gender: Male, Polarization: RHCP polarization. Compliance certificates: RoHS, REACH. Width: 1.97" (50 mm), Depth: 1.97" (50 mm), Height: 1.89" (48 mm). Navigation systems supported: GPS, Glonass, Galileo

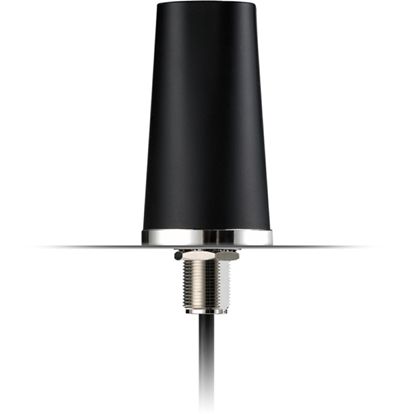

Taoglas TLS.01.305721. Antenna gain level (max): 2.3 dBi, Frequency band: 0.6 - 6 GHz, Impedance: 50 Ω. Antenna connector type: N-type, Connector gender: Male, Polarization: Vertical polarization. Compliance certificates: RoHS, REACH, Certification: IK10. Width: 1.65" (42 mm), Depth: 1.61" (41 mm), Height: 3.13" (79.4 mm). Quantity per pack: 1 pc(s)

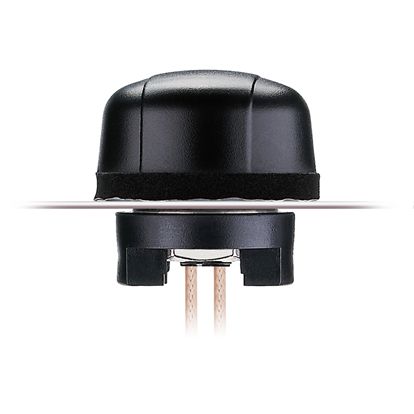

Taoglas MA510. Antenna gain level (max): 4.2 dBi, Frequency band: 2.4 - 2.5 | 4.8 - 5.8, Networking standards: IEEE 802.11n, IEEE 802.11ac. Antenna type: Omni-directional antenna, Antenna connector type: 2x RP-SMA, Connector gender: Male. Power consumption (max): 2 W. Compliance certificates: REACH, RoHS. Height: 1.14" (29 mm), Diameter: 1.93" (4.9 cm)
