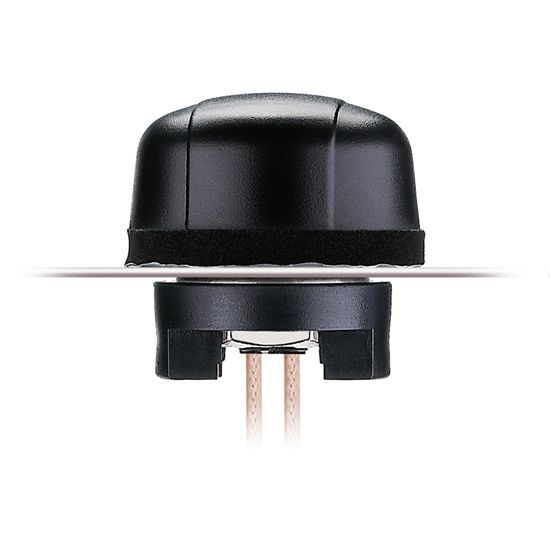

Taoglas MA510 network antenna Omni-directional antenna 2x RP-SMA 4.2 dBi
Taoglas MA510. Antenna gain level (max): 4.2 dBi, Frequency band: 2.4 - 2.5 | 4.8 - 5.8, Networking standards: IEEE 802.11n, IEEE 802.11ac. Antenna type: Omni-directional antenna, Antenna connector type: 2x RP-SMA, Connector gender: Male. Power consumption (max): 2 W. Compliance certificates: REACH, RoHS. Height: 1.14" (29 mm), Diameter: 1.93" (4.9 cm)
SKU:
6570105
Manufacturer part number:
MA510.C.CG.005
The MIMO communication system has been one of the most promising technologies, well suited for high data rate communication. A MIMO (Multiple-Input-Multiple-Output) system use at least two antenna structures and is more advantageous than single-input single-output (SISO) in an aspect of increasing channel capacity and reducing transmitting power. MIMO antennas should have a compact structure, high radiation efficiency, low envelope correlation, and high isolation between the signal ports. In small structures (antennas spaced closely), the application of MIMO technology has been restricted by a high degree of coupling and spatial correlation between antenna elements due to the limited available space. The isolation between antennas become critical as it can deteriorate the system performance and decreases channel capacity.
The Hercules MA510 MIMO antenna is IP65 rated, low profile, heavy-duty, external M2M antenna for use, transportation and remote monitoring applications. This unique omnidirectional antenna provides high efficiency and high isolation between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi®. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. The two antenna elements are vertically polarized.
For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 29mm high, the Hercules MA510 MIMO antenna provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.
- Hercules Screw Mount MIMO Dual Band 2.4/5.8GHz
- 2.4-2.5GHz –Peak Gain Gain 3.9dBi, Efficiency 60%
- 4.8-5.8GHz –Peak Gain Gain 3dBi, Efficiency 40%
- UV and vandal-resistant PC housing
- IP65 Rated Enclosure
- Cables: 1m RG-316
- Connectors: RP-SMA(M)
- No Ground Plane Required
- High Isolation Between Antenna Elements
