Built to reimage connection, reinforce security and redefine experience

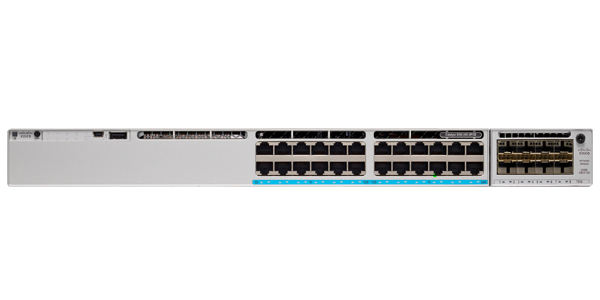

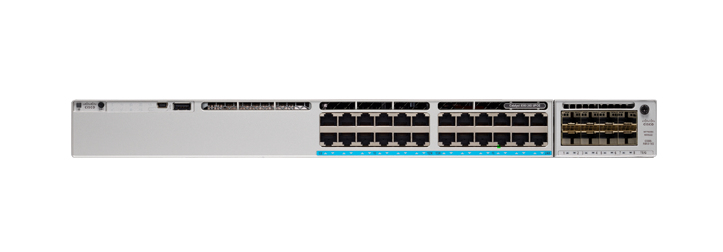

Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network – on-premises, virtual or from the cloud.
Products specifications
Attribute name | Attribute value |
---|
Power Source | AC |
Stackable | Yes |
Installed SFP modules quantity | 0 |
Installed SFP+ modules quantity | 0 |
Switching capacity | 208 Gbit/s |
Power supply included | Yes |
Forwarding rate | 154.76 Mpps |
Multicast MAC address table | 8000 entries |
IPv4 multicast entries | 32000 |
IPv6 multicast entries | 16000 |
LED indicators | Yes |
Mean time between failures (MTBF) | 354300 h |
Networking standards | IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at |
Rack mounting | Yes |
MAC address table | 32000 entries |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Power consumption (typical) | 1100 W |
Multicast support | Yes |
Jumbo frames support | Yes |
Jumbo frames | 9198 |
Quality of Service (QoS) support | Yes |
Flash memory | 16000 MB |
Switch layer | L3 |
