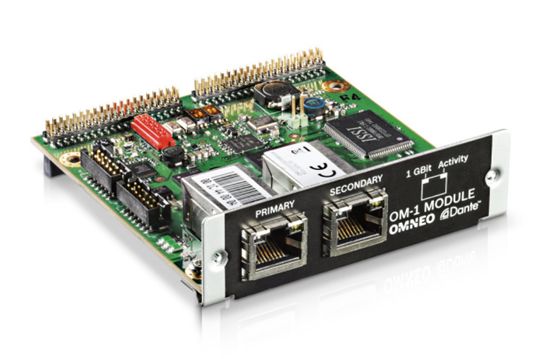

Bosch OM-1 interface cards/adapter Internal RJ-45 1

Bosch OM-1 interface cards/adapter Internal RJ-45

Bosch OM-1. Output interface: RJ-45. Power supply input voltage: 5 V. Width: 3.5" (89 mm), Depth: 3.62" (92 mm), Height: 1.06" (27 mm)
Manufacturers: BOSCH COMMUNICATION , Bosch
SKU: 6472254
Manufacturer part number: OM-1
UPC: 800549785884
MSRP: $1,295.00
$970.30
OM-1 Interface module

The OM‑1 is a compact interface module which is prepared for a connection to an OMNEO network. The OM‑1 is able to send and receive Dante audio to and from other PAVIRO Controllers with an OM‑1 Interface Module. The transmission of up to 16 digital audio input signals and 16 digital audio output channels with low latency is possible with the OM‑1.
OM-1 Interface module

The OM‑1 is a compact interface module which is prepared for a connection to an OMNEO network. The OM‑1 is able to send and receive Dante audio to and from other PAVIRO Controllers with an OM‑1 Interface Module. The transmission of up to 16 digital audio input signals and 16 digital audio output channels with low latency is possible with the OM‑1.

Products specifications

Attribute name Attribute value
Width 3.5"
Depth 3.62"
Height 1.06"
Weight 2.65 oz
Power supply input voltage 5 V
Design
Internal Yes
Ports & interfaces
Output interface RJ-45
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 90 %
*
*
*
