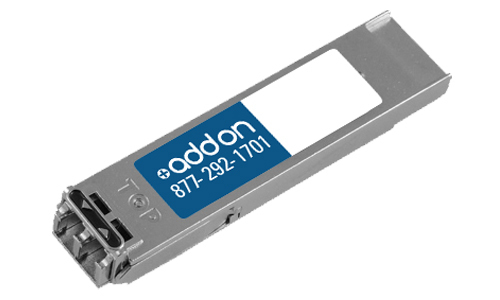

Add-On's XFP transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.
All our XFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant
Products specifications
| Attribute name |
Attribute value |
|
Compliance certificates
|
RoHS |
|
Certification
|
MSA |
|
Sustainability certificates
|
RoHS |
|
Hot-swap
|
Yes |
|
Plug and Play
|
Yes |
|
Interface type
|
XFP |
|
Fiber optic connector
|
LC |
|
SFP transceiver standard
|
SR |
|
Wavelength
|
850 nm |
|
SFP transceiver type
|
Fiber optic |
|
Maximum data transfer rate
|
10000 Mbit/s |
|
Multi-mode fiber (MMF) supported
|
Yes |
|
Networking standards
|
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
|
Auto MDI/MDI-X
|
Yes |
|
Input voltage
|
3.3 V |
|
Storage relative humidity (H-H)
|
10 - 80 % |
|
Operating temperature (T-T)
|
0 - 70 °C |
|
Storage temperature (T-T)
|
-40 - 85 °C |
|
Operating relative humidity (H-H)
|
10 - 80 % |
