AddOn Networks 100BTX-100BFX network media converter 100 Mbit/s 1310 nm Black1
AddOn Networks 100BTX-100BFX network media converter 100 Mbit/s 1310 nm Black1
AddOn Networks 100BTX-100BFX network media converter 100 Mbit/s 1310 nm Black1

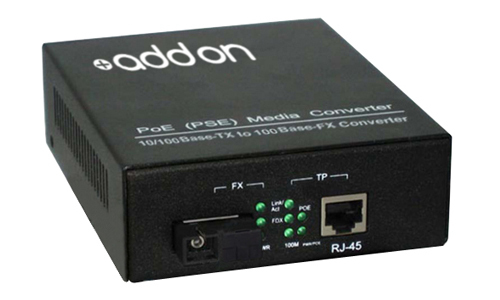

AddOn Networks 100BTX-100BFX network media converter 100 Mbit/s 1310 nm Black

AddOn Networks 100BTX-100BFX. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Networking standards: IEEE 802.3af. Maximum transfer distance: 78740.2" (2000 m), Wavelength: 1310 nm. LED indicators: Link, Power, Status, Product color: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 120 V, Input current: 0.15 A, Output voltage: 48 V
Manufacturer: AddOn Networks
SKU: 4103027
Manufacturer part number: ADD-FMCP-FX-SC
UPC: 0821455030134
MSRP: $165.00
$105.61
ADD-FMCP-FX-SC is a 10/100Base-TX to 100Base-FX media converter, which converts 100Base Copper to 100Base-FX via a 1310nm multi-mode fiber (MMF) SC Connector, allowing a distance reach up to 2km. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. ADD-FMCP-FX-SC provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending your network reach beyond the 100m reach limitation of copper.
ADD-FMCP-FX-SC is a 10/100Base-TX to 100Base-FX media converter, which converts 100Base Copper to 100Base-FX via a 1310nm multi-mode fiber (MMF) SC Connector, allowing a distance reach up to 2km. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. ADD-FMCP-FX-SC provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending your network reach beyond the 100m reach limitation of copper.

Products specifications

Attribute name Attribute value
Design
Internal No
Technical details
Product color Black
Features
Input current 0.15 A
Output current 0.54 A
LED indicators Link, Power, Status
Output voltage 48 V
Performance
Maximum data transfer rate 100 Mbit/s
Fiber optic connector SC
Maximum transfer distance 78740.2"
Wavelength 1310 nm
Networking standards IEEE 802.3af
Fiber ports quantity 1
Other features
Transmission distance (max) 2 km
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Power
Input voltage 120 V
Power consumption (typical) 25 W
Network
Converter input interface 12 V
Ethernet interface type Fast Ethernet
Ethernet LAN data rates 100 Mbit/s
Operational conditions
Operating temperature (T-T) 32 - 122 °F
Operating relative humidity (H-H) 5 - 90 %
*
*
*

Products specifications

Attribute name Attribute value
Design
Internal No
Technical details
Product color Black
Features
Input current 0.15 A
Output current 0.54 A
LED indicators Link, Power, Status
Output voltage 48 V
Performance
Maximum data transfer rate 100 Mbit/s
Fiber optic connector SC
Maximum transfer distance 78740.2"
Wavelength 1310 nm
Networking standards IEEE 802.3af
Fiber ports quantity 1
Other features
Transmission distance (max) 2 km
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Power
Input voltage 120 V
Power consumption (typical) 25 W
Network
Converter input interface 12 V
Ethernet interface type Fast Ethernet
Ethernet LAN data rates 100 Mbit/s
Operational conditions
Operating temperature (T-T) 32 - 122 °F
Operating relative humidity (H-H) 5 - 90 %
