Tripp Lite N845-02M-8L-MG. Cable length: 78.7" (2 m), Cable type: CMP, Fiber optic type: OM4, Connector 1: MPO/MTP, Connector 2: 8x LC, Core diameter: 50 µm

Manufacturer: Tripp Lite

SKU: 4726728

Manufacturer part number: N845-02M-8L-MG

UPC: 0037332200051

MSRP: $349.31

Price: $248.04

Qty:

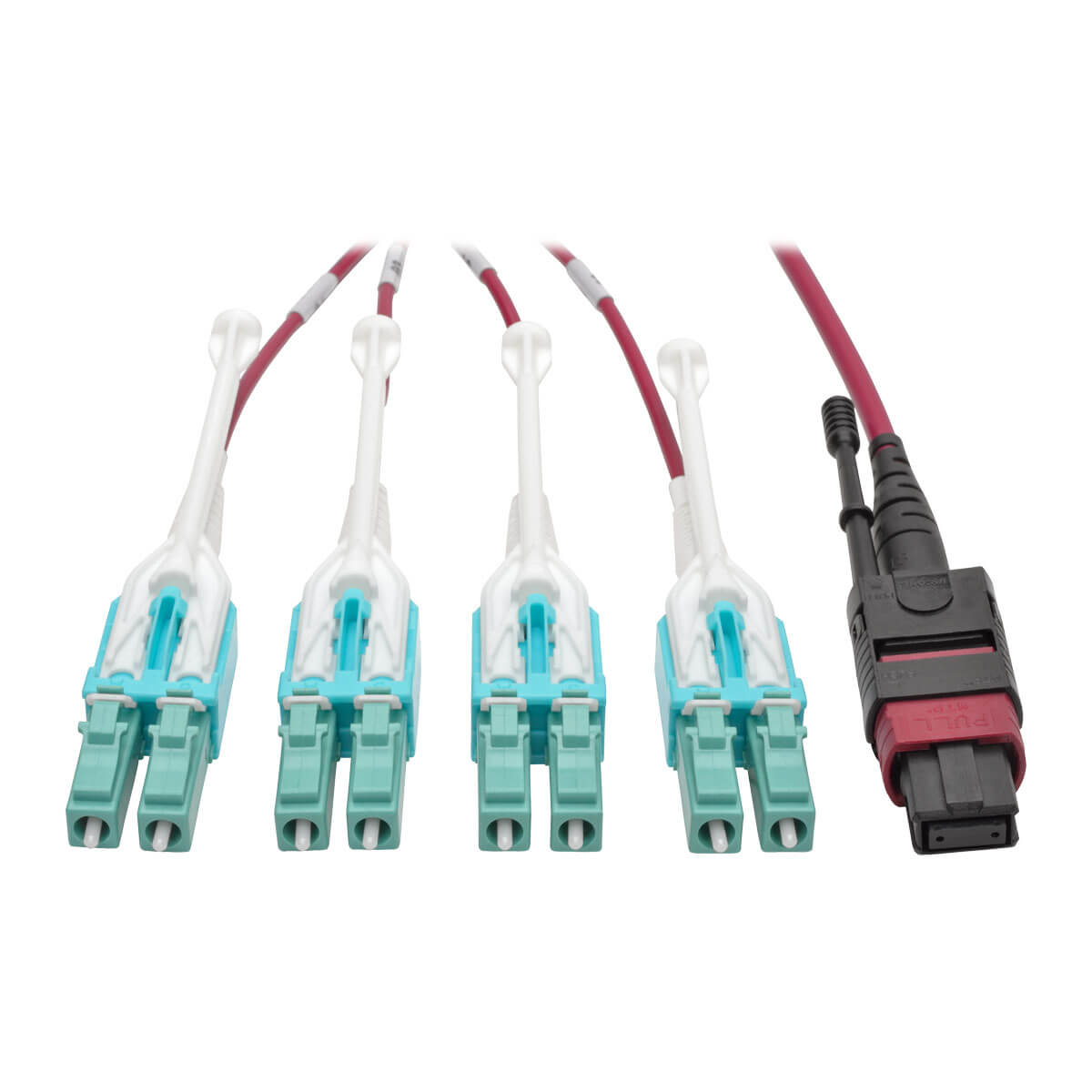

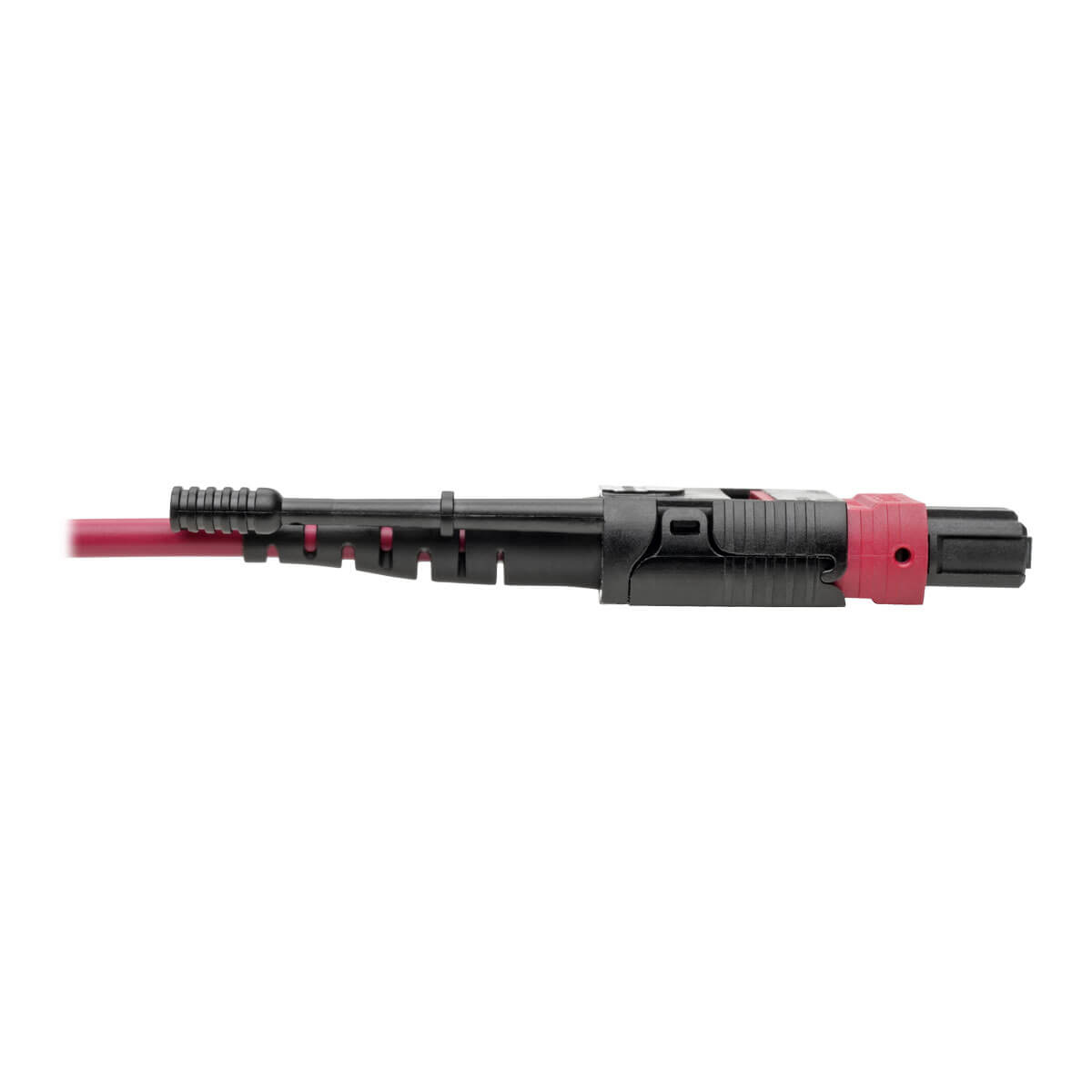

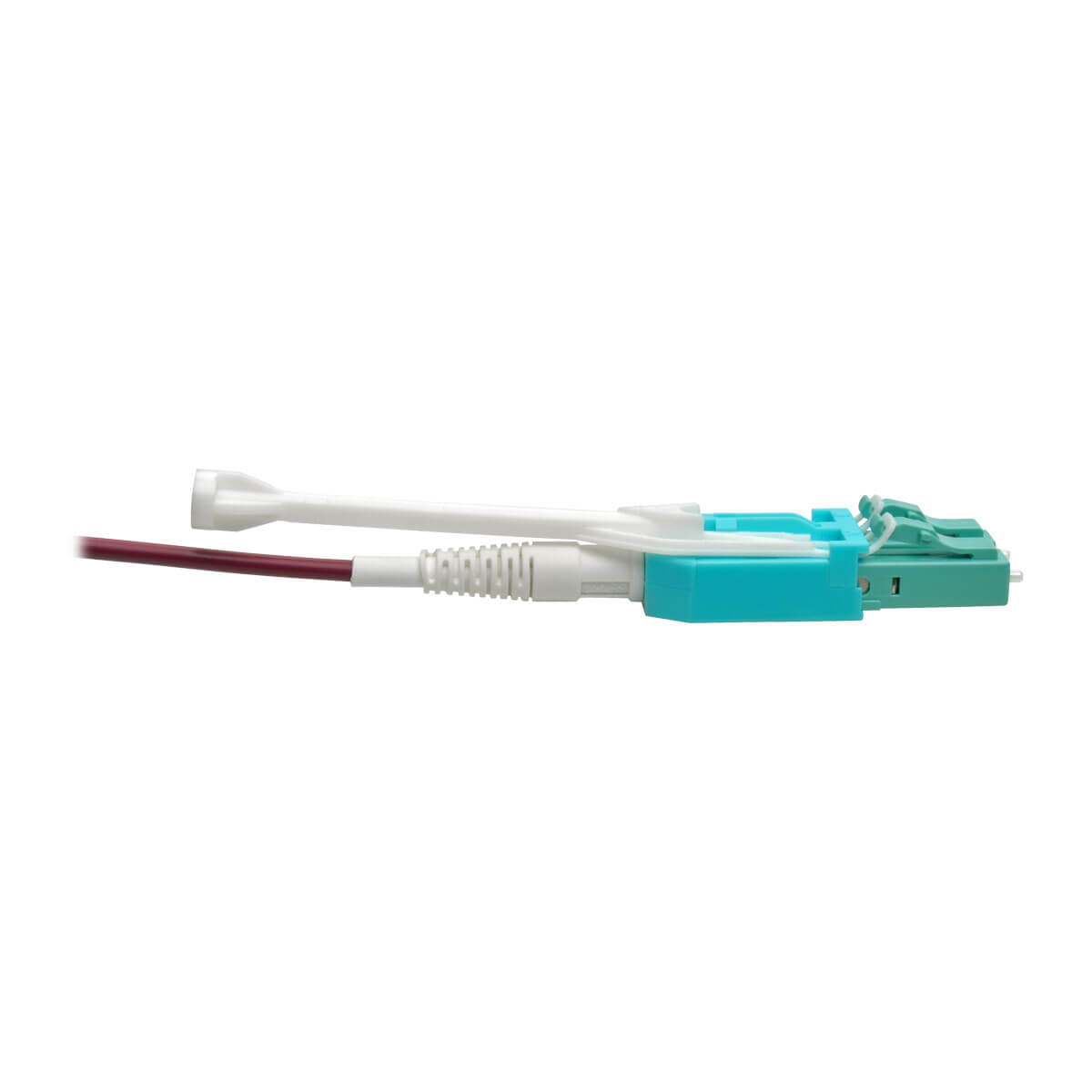

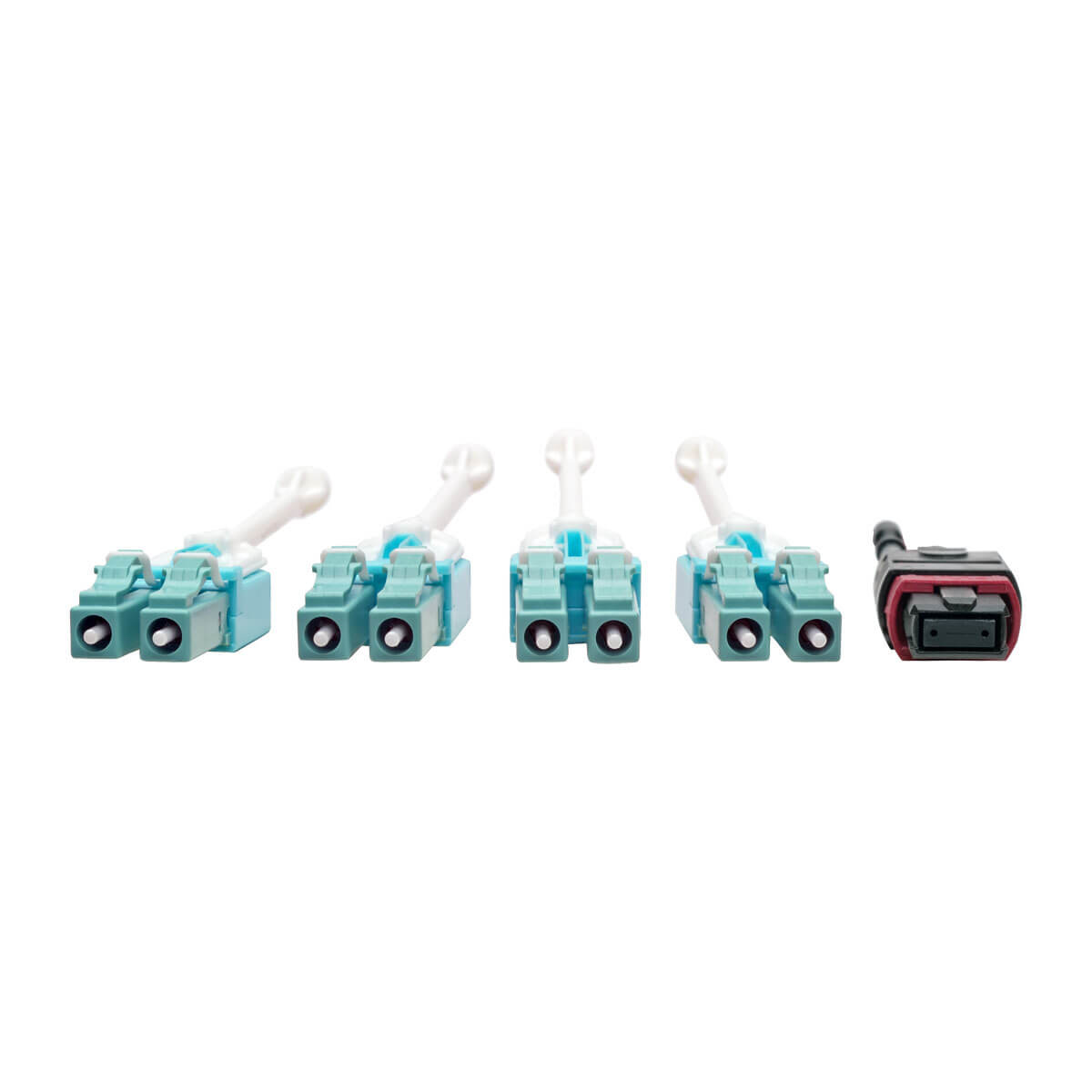

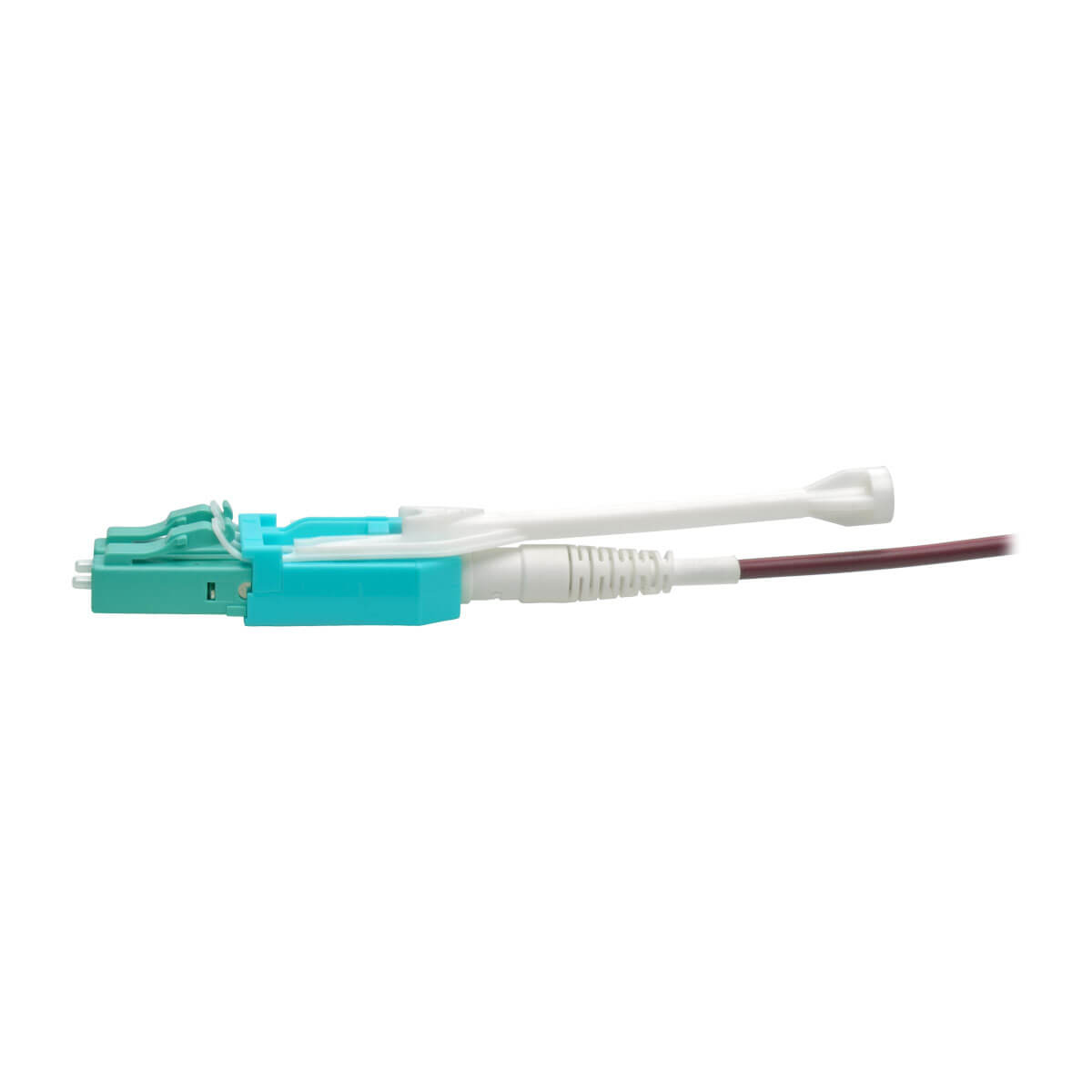

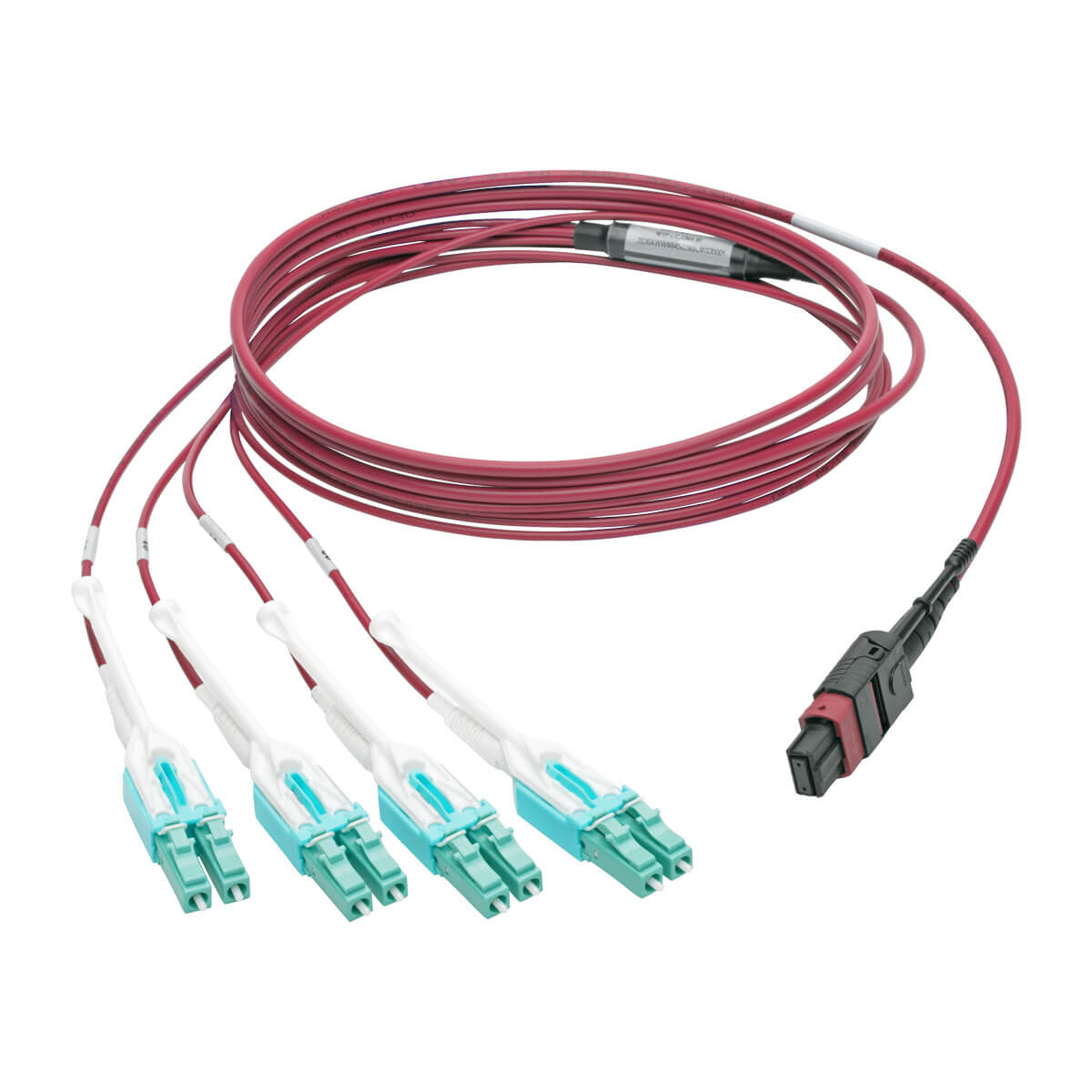

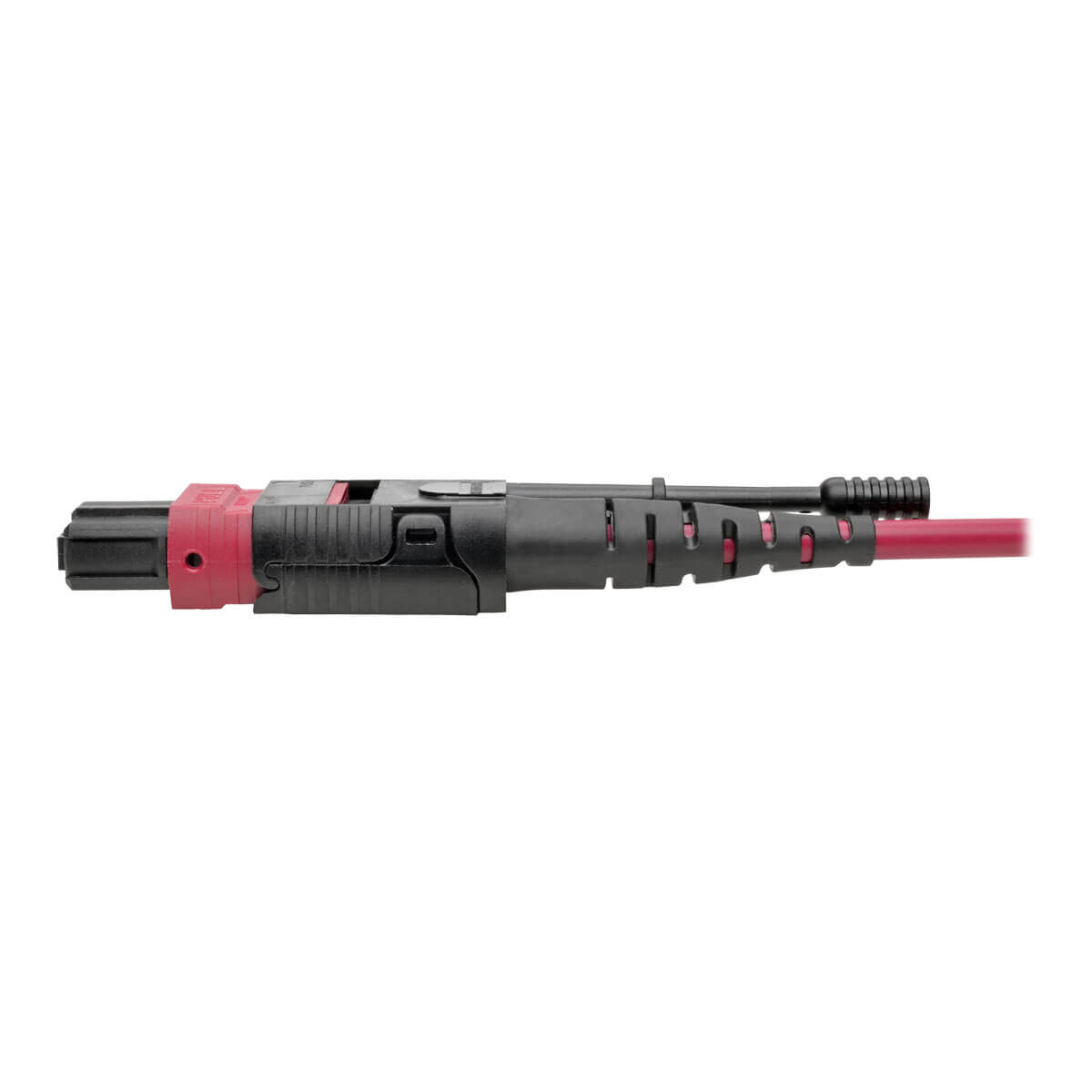

The two-meter N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one female MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

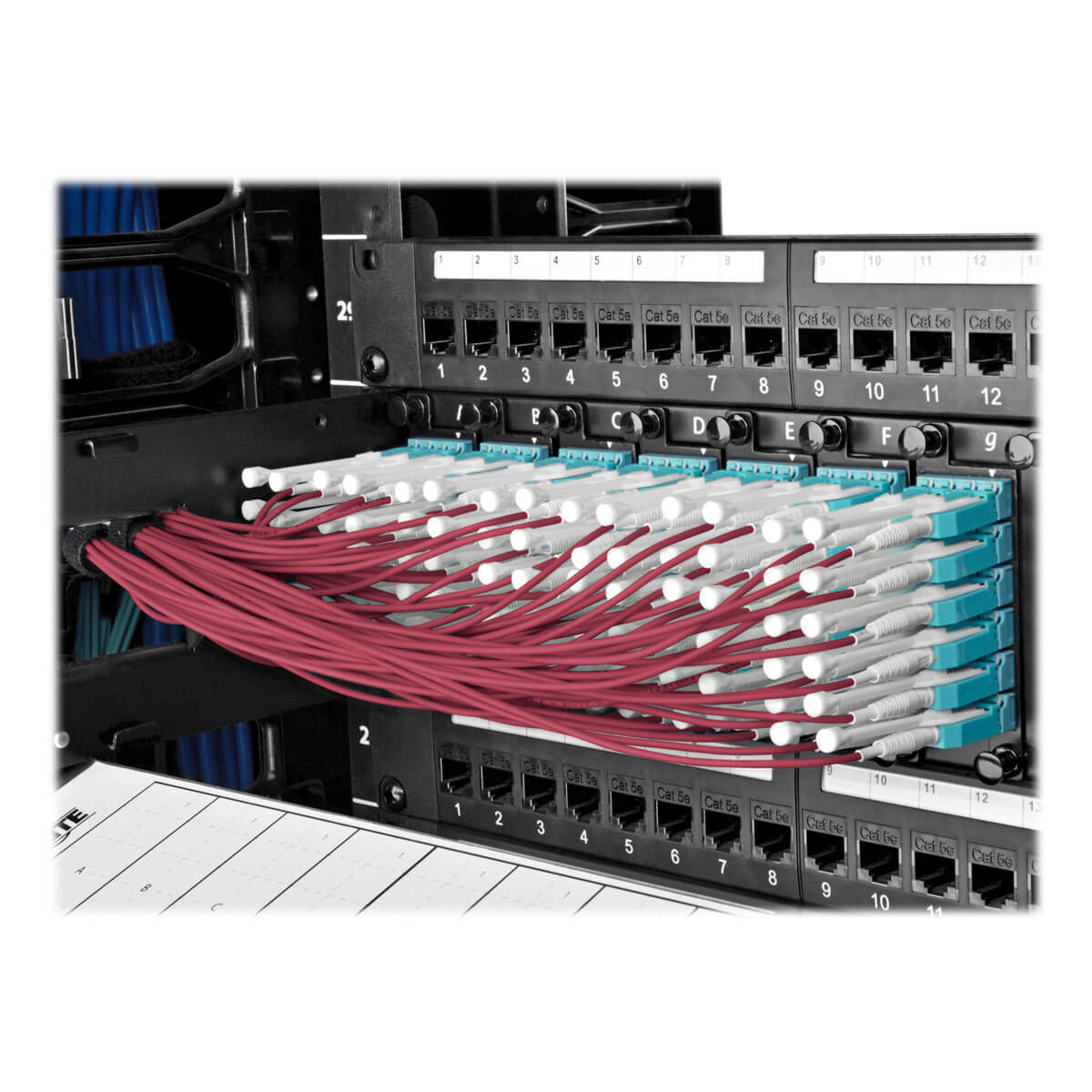

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-02M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

Push/pull tab connectors install/remove with one hand
Plenum-rated jacket for connecting in ceilings, walls and ducts
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
Magenta color for easy OM4 identification
Slim, space-saving uniboot design for neat cable management
Premium-grade ceramic ferrule designed for fast applications

Overview
Specifications
Contact Us

Push/pull tab connectors install/remove with one hand
Plenum-rated jacket for connecting in ceilings, walls and ducts
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
Magenta color for easy OM4 identification
Slim, space-saving uniboot design for neat cable management
Premium-grade ceramic ferrule designed for fast applications

Products specifications

Attribute name	Attribute value
Product color	Black, Magenta, Turquoise
Master (outer) case GTIN (EAN/UPC)	10037332200058
Master (outer) case length	4"
Master (outer) case width	6.1"
Master (outer) case height	7.3"
Cable Type	Single-mode
Cable Length	78.7"
Master (outer) case weight	27.2 oz
Country of Origin	China
Sustainability certificates	RoHS
Harmonized System (HS) code	85447000
Compliance certificates	RoHS
Features
Connector 2	OM4
Core diameter	50 µm
Data transfer rate	100 Gbit/s
Cladding diameter	125 µm
Connector 1	MPO/MTP
Fiber optic type	OM4
Connector material	Ceramic
Fiber mode structure	Multi-mode
Connector 1 gender	Male
Connector 2 gender	Female
Packaging data
Package width	7"
Package depth	0.5"
Package height	9"
Package weight	2.47 oz
Logistics data
Quantity per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C

Your name *

Your email *

Enquiry *

Products specifications

Attribute name	Attribute value
Product color	Black, Magenta, Turquoise
Master (outer) case GTIN (EAN/UPC)	10037332200058
Master (outer) case length	4"
Master (outer) case width	6.1"
Master (outer) case height	7.3"
Cable Type	Single-mode
Cable Length	78.7"
Master (outer) case weight	27.2 oz
Country of Origin	China
Sustainability certificates	RoHS
Harmonized System (HS) code	85447000
Compliance certificates	RoHS
Features
Connector 2	OM4
Core diameter	50 µm
Data transfer rate	100 Gbit/s
Cladding diameter	125 µm
Connector 1	MPO/MTP
Fiber optic type	OM4
Connector material	Ceramic
Fiber mode structure	Multi-mode
Connector 1 gender	Male
Connector 2 gender	Female
Packaging data
Package width	7"
Package depth	0.5"
Package height	9"
Package weight	2.47 oz
Logistics data
Quantity per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
