Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow
Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow1 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow2 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow3 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow4 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow5 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow6 Picture of Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow7

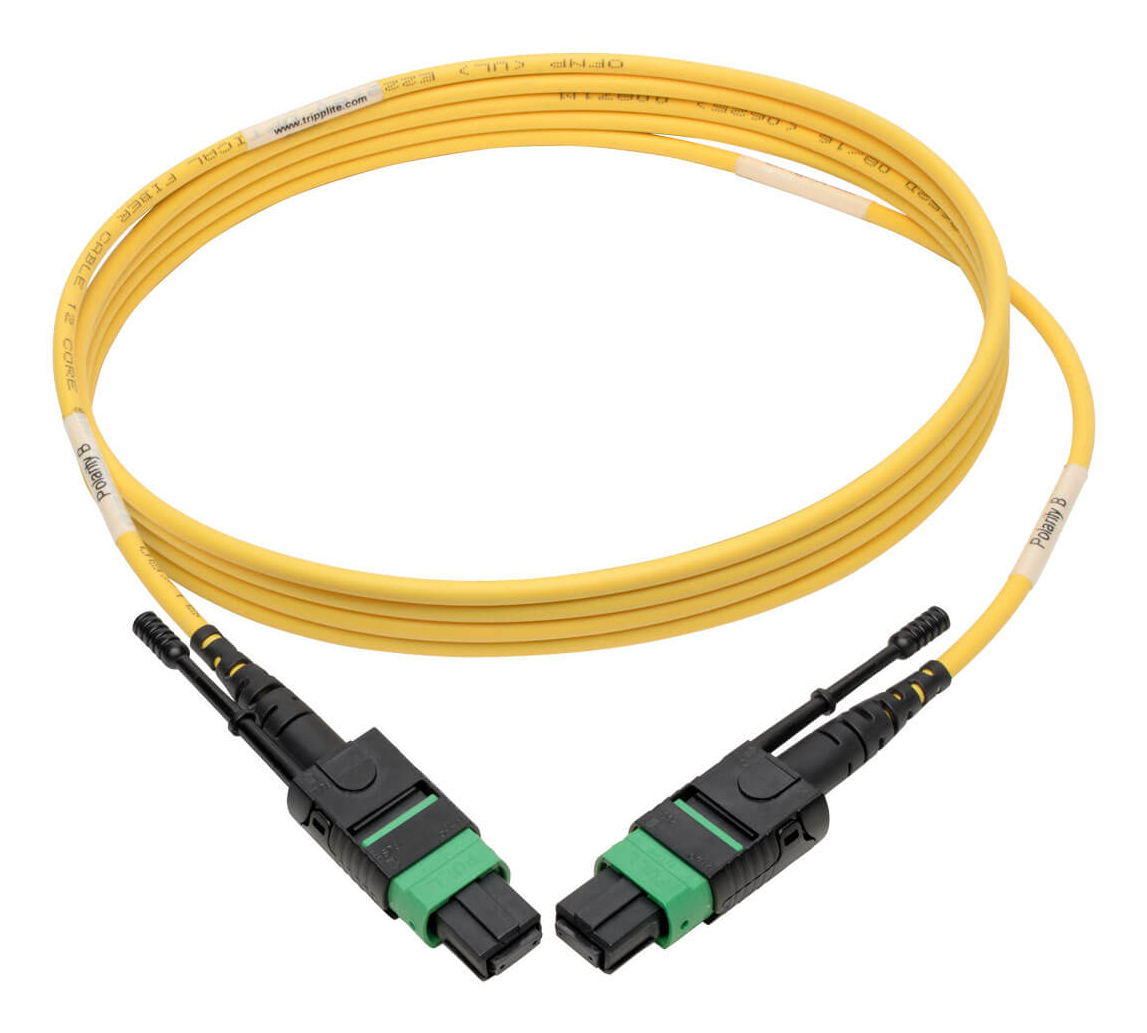

Tripp Lite N390-01M-12-AP InfiniBand/fibre optic cable 39.4" (1 m) MPO/MTP OFNP Yellow

Tripp Lite N390-01M-12-AP. Cable length: 39.4" (1 m), Cable type: OFNP, Connector 1: MPO/MTP, Connector 2: MPO/MTP
Manufacturer: Tripp Lite
SKU: 5014155
Manufacturer part number: N390-01M-12-AP
UPC: 0037332205360
MSRP: $309.00
$240.25
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

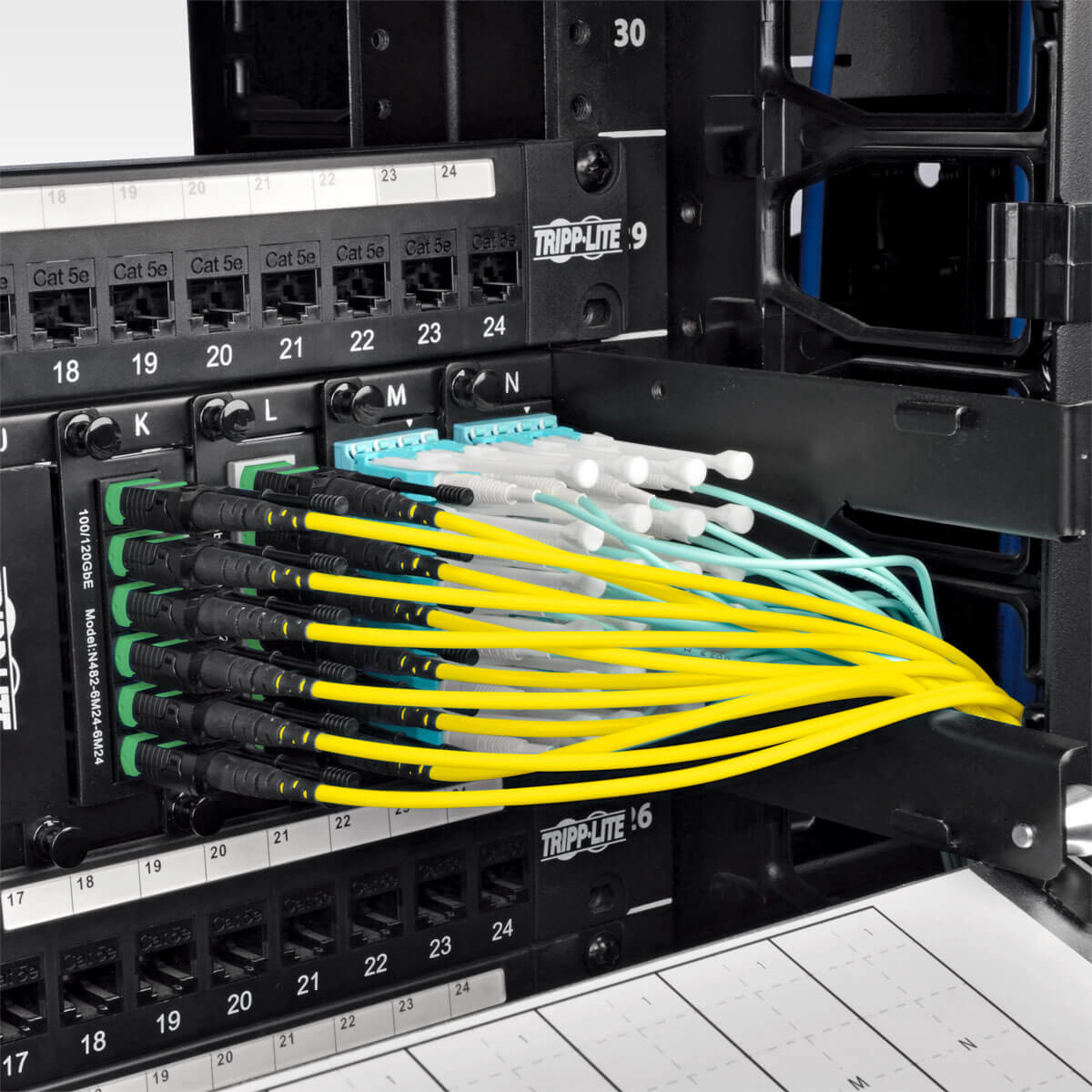

Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

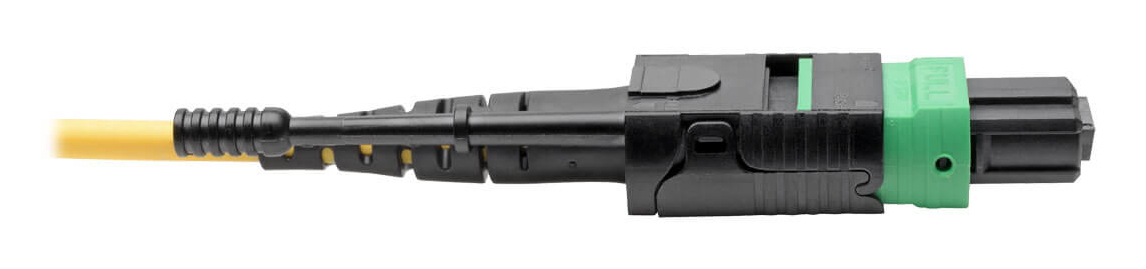

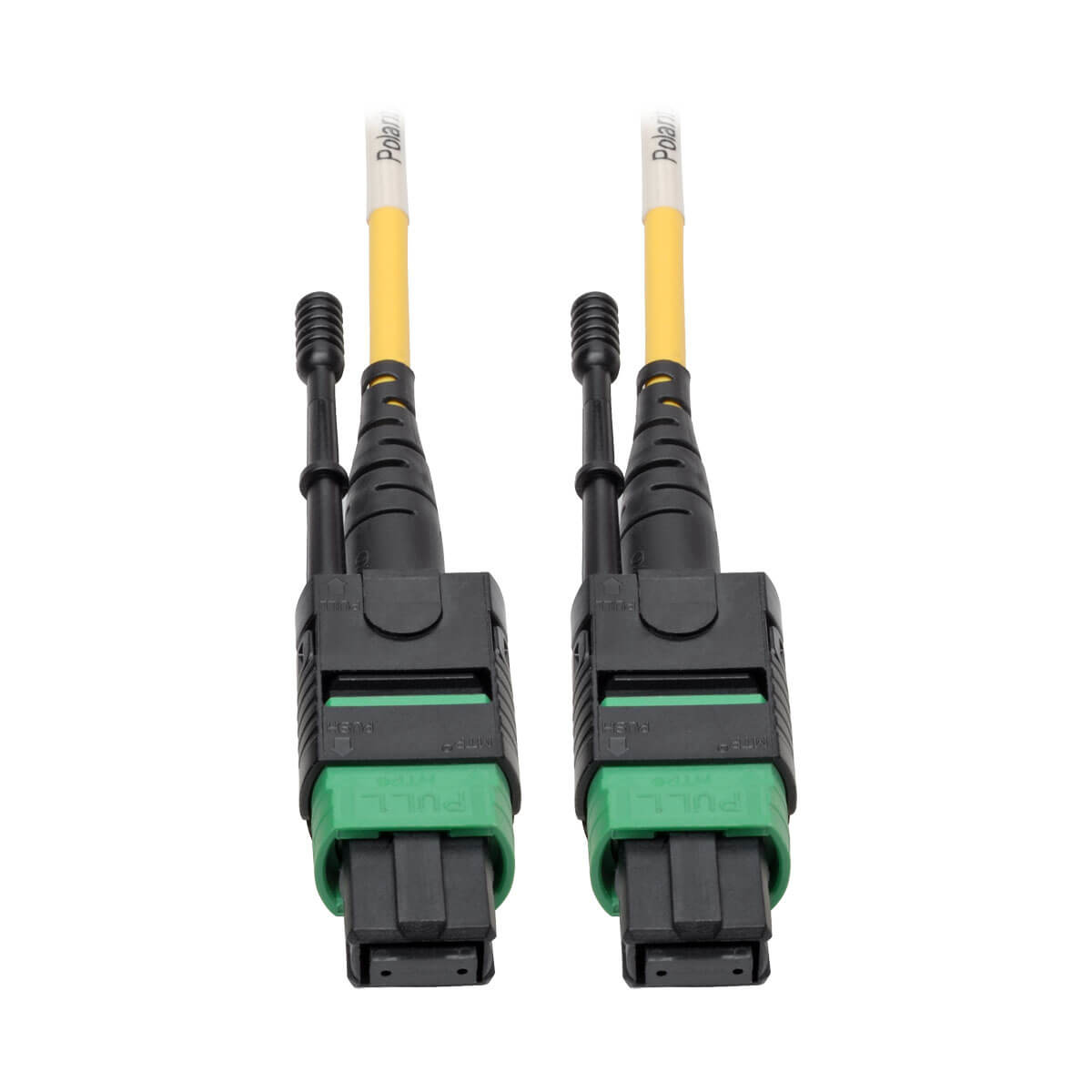

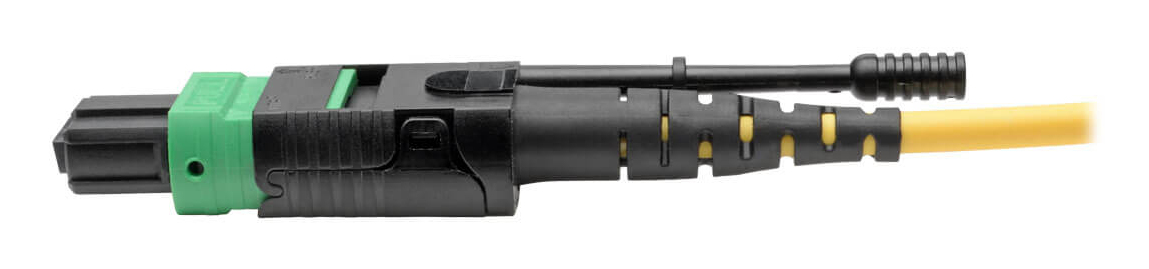

MTP/MPO APC Connectors with Push/Pull Tabs

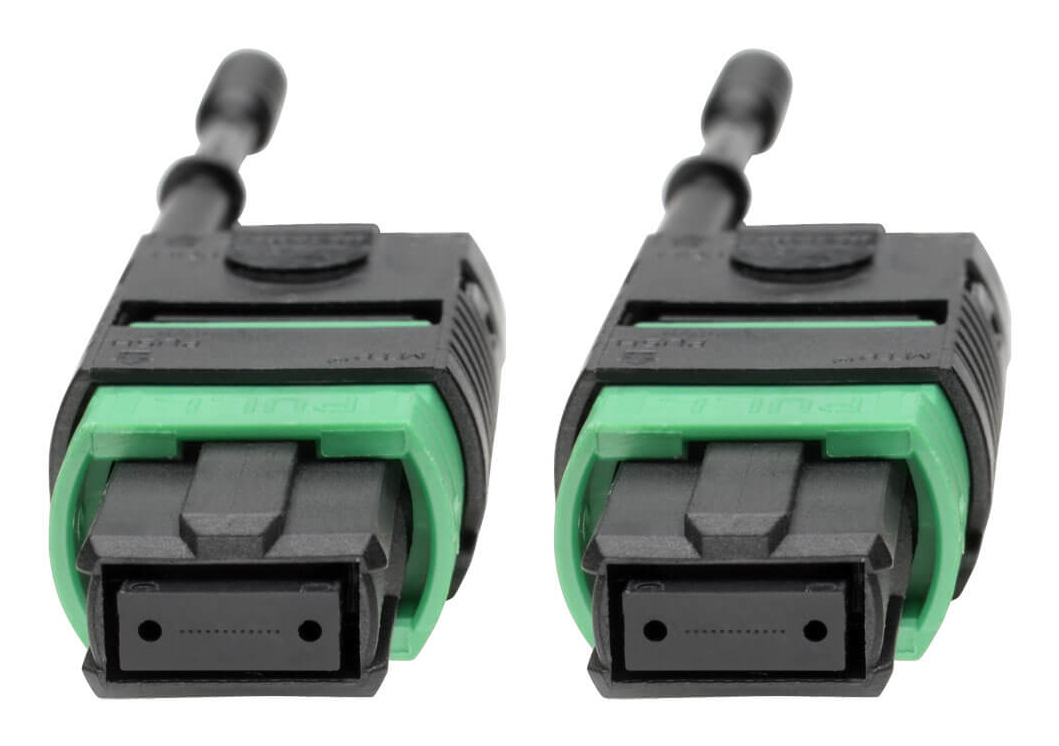

12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection



  • Push/pull tab connectors easily install/remove with one hand
  • 12-fiber MTP/MPO connectors with 12x density of SC connectors
  • 100% tested for low insertion loss and back reflection
  • Angled APC connectors protect laser against destabilization
  • Yellow color for easy singlemode identification
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

MTP/MPO APC Connectors with Push/Pull Tabs
12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection



  • Push/pull tab connectors easily install/remove with one hand
  • 12-fiber MTP/MPO connectors with 12x density of SC connectors
  • 100% tested for low insertion loss and back reflection
  • Angled APC connectors protect laser against destabilization
  • Yellow color for easy singlemode identification
Products specifications
Attribute nameAttribute value
Master (outer) case GTIN (EAN/UPC)10037332205367
Master (outer) case length7.3"
Cable TypeMale
Cable Length39.4"
Master (outer) case width7.3"
Harmonized System (HS) code8544.70.0000
Country of OriginChina
Master (outer) case weight9.88 oz
Master (outer) case height4"
Compliance certificatesRoHS
Technical details
Product colorYellow
Sustainability certificatesRoHS
Features
Connector 2Optical fiber non-conductive plenum (OFNP)
Data transfer rate100 Gbit/s
Connector 1MPO/MTP
Fiber mode structureSingle-mode
Connector 1 genderFemale
Connector 2 genderFemale
Packaging data
Package width7"
Package depth0.5"
Package height9"
Package weight0.705 oz
Logistics data
Quantity per master (outer) case10 pc(s)
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
*
*
*
Products specifications
Attribute nameAttribute value
Master (outer) case GTIN (EAN/UPC)10037332205367
Master (outer) case length7.3"
Cable TypeMale
Cable Length39.4"
Master (outer) case width7.3"
Harmonized System (HS) code8544.70.0000
Country of OriginChina
Master (outer) case weight9.88 oz
Master (outer) case height4"
Compliance certificatesRoHS
Technical details
Product colorYellow
Sustainability certificatesRoHS
Features
Connector 2Optical fiber non-conductive plenum (OFNP)
Data transfer rate100 Gbit/s
Connector 1MPO/MTP
Fiber mode structureSingle-mode
Connector 1 genderFemale
Connector 2 genderFemale
Packaging data
Package width7"
Package depth0.5"
Package height9"
Package weight0.705 oz
Logistics data
Quantity per master (outer) case10 pc(s)
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
