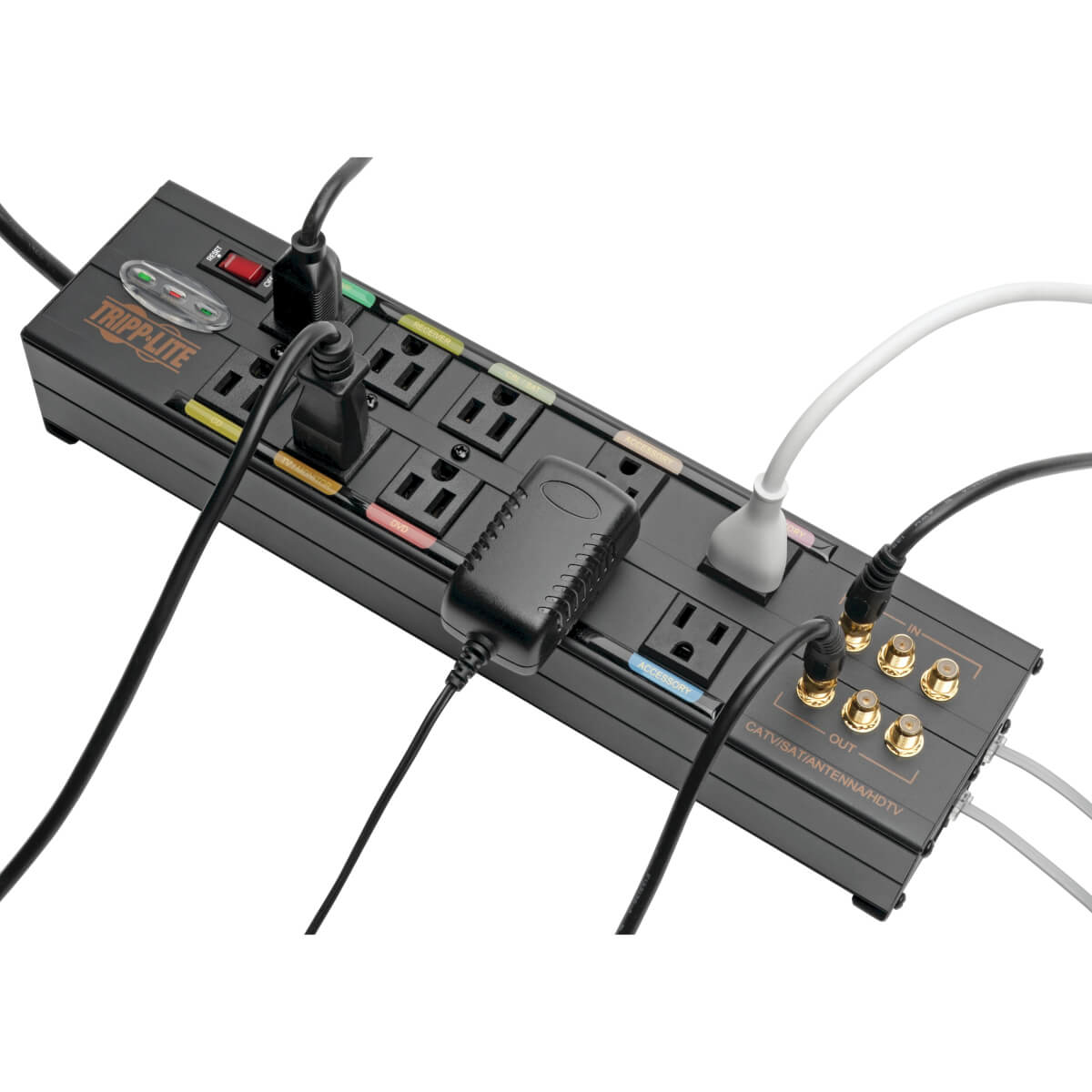

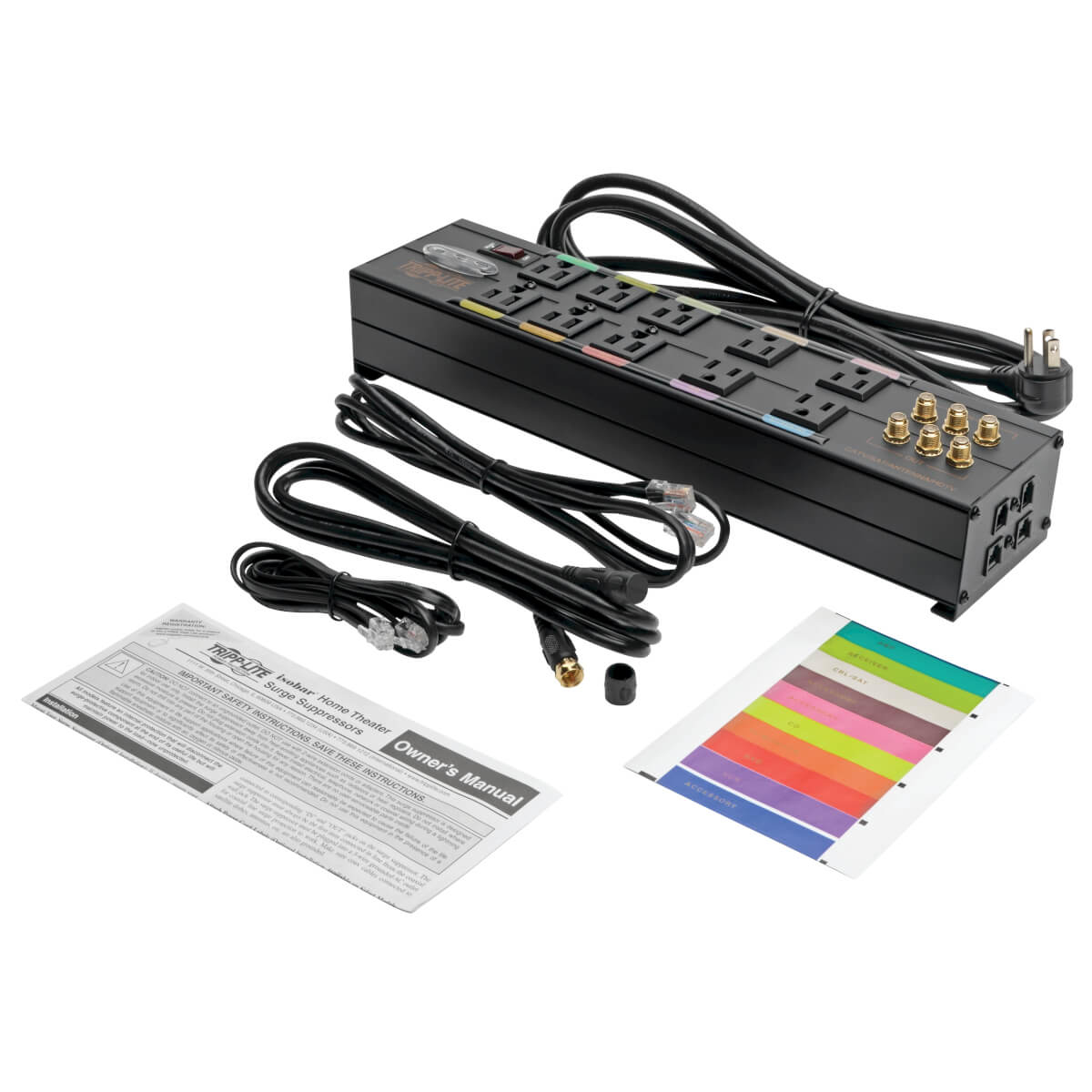

Tripp Lite's HT10DBS Isobar Home/Business Theater Surge Suppressor provides premium protection--3570 joules--stopping damaging surges and filtering disruptive line noise so components perform at their peak! You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans. Perfect for medium-to-large home/business theater installations: high-definition TVs, PVRs, satellite and A/V receivers, subwoofers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components. 10 outlets (with transformer spacing and plug-in safety covers), 3-line coaxial protection, 1-line tel/modem protection and 1-line network (100BaseT, high-speed) protection safeguard an entire home/business theater system. $500,000 Ultimate Lifetime Insurance coverage (USA and Canada only). Includes all-metal housing, color-coordinated outlet/plug labels, three diagnostic LEDs, 8-ft. cord with a right-angle plug, 6-ft. gold coax cable, 6-ft. phone cord and 6-ft. network cable.
-$500,000 Ultimate Lifetime Insurance (USA and Canada only) covers connected components against surge damage...for life!
-Isolated Filter Banks eliminate interference between connected components.
-All-metal housing safely withstands the strongest surges.

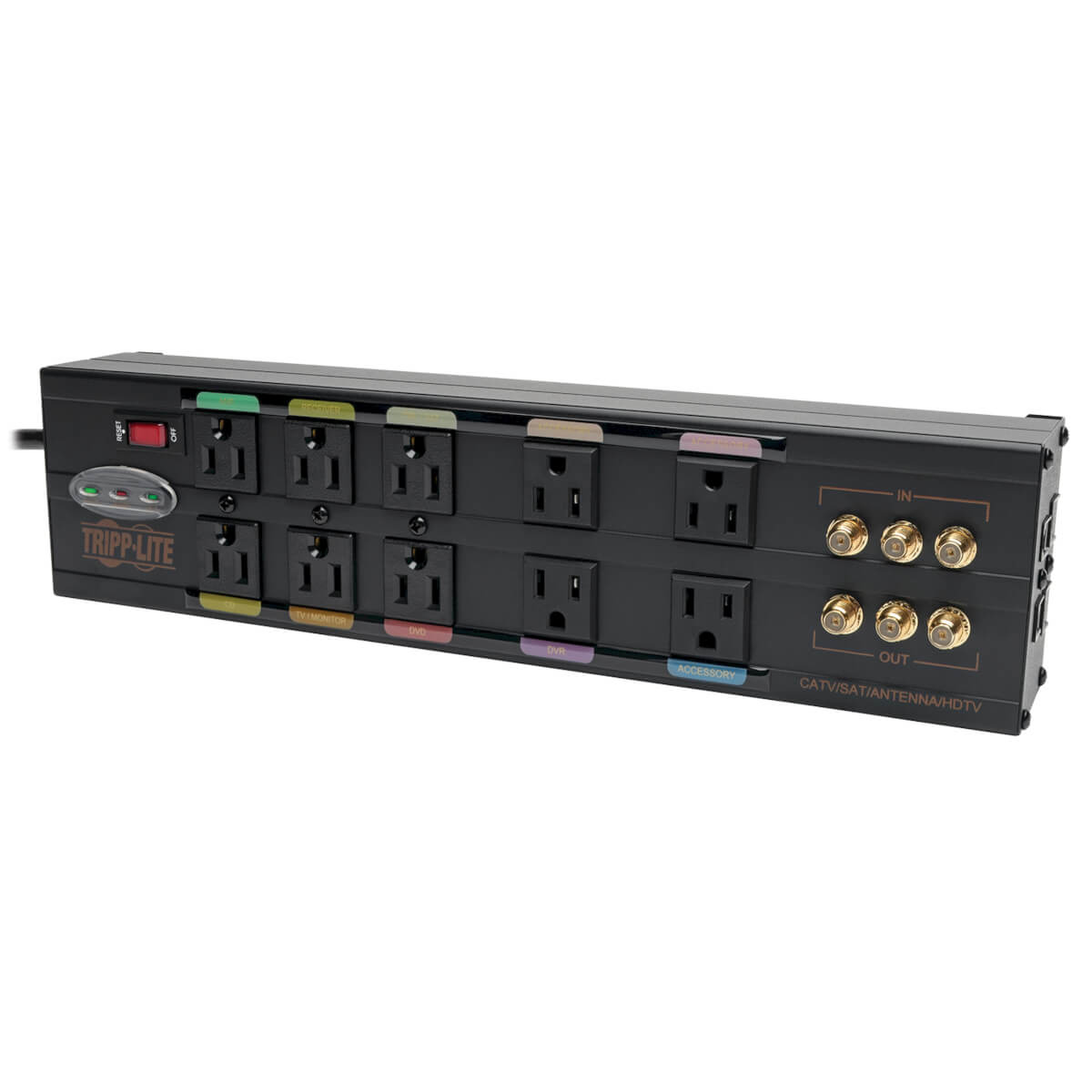

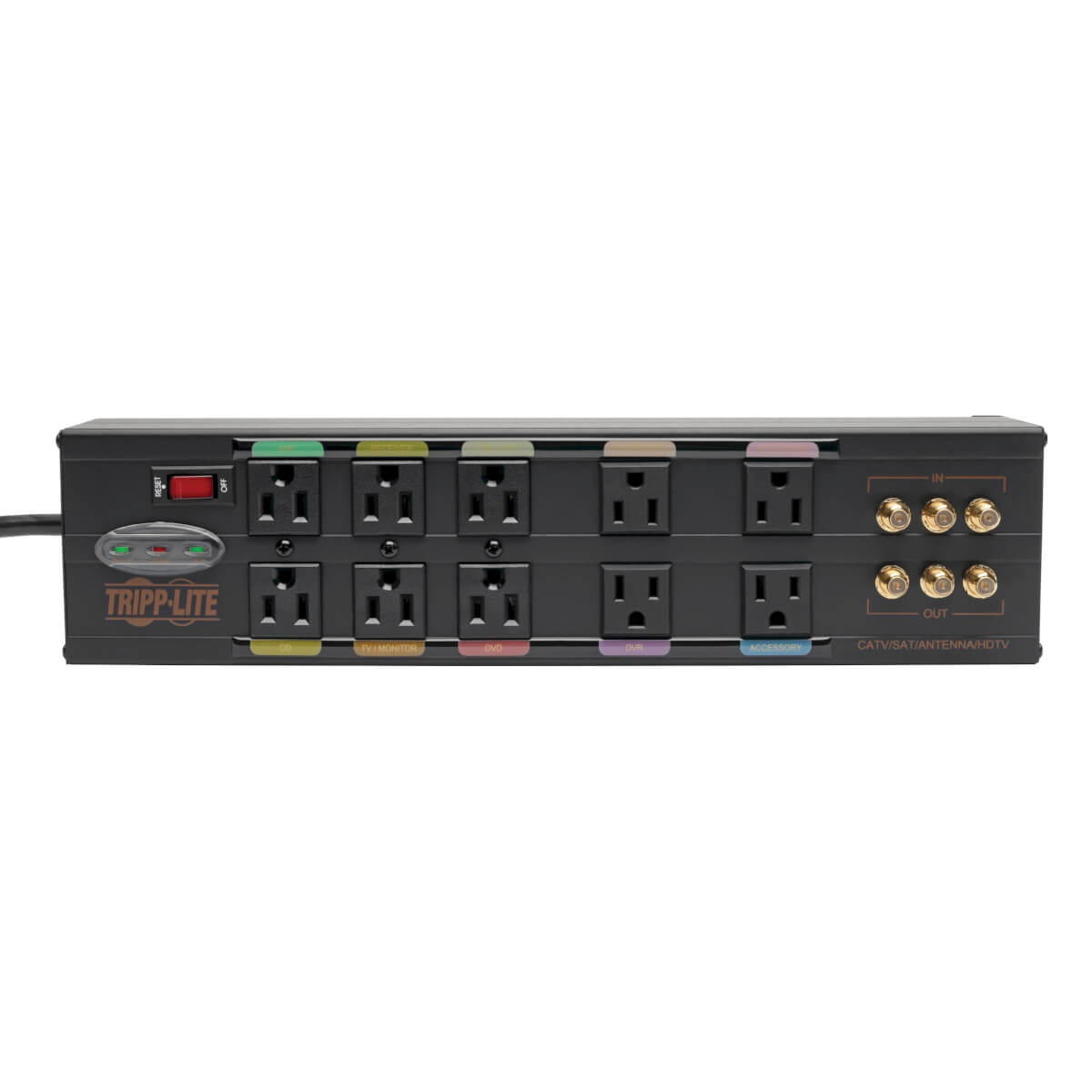

-10 surge-protected NEMA 5-15R AC outlets safeguard an entire home/business theater system.
-Widely spaced outlets accommodate up to 6 transformers.
-Four plug-in safety covers protect against accidental contact with unused outlets.
-3 sets of surge-protected Type F gold coaxial connectors (with included 6-ft. gold coax cable) safeguard components on cable, satellite and antenna line.

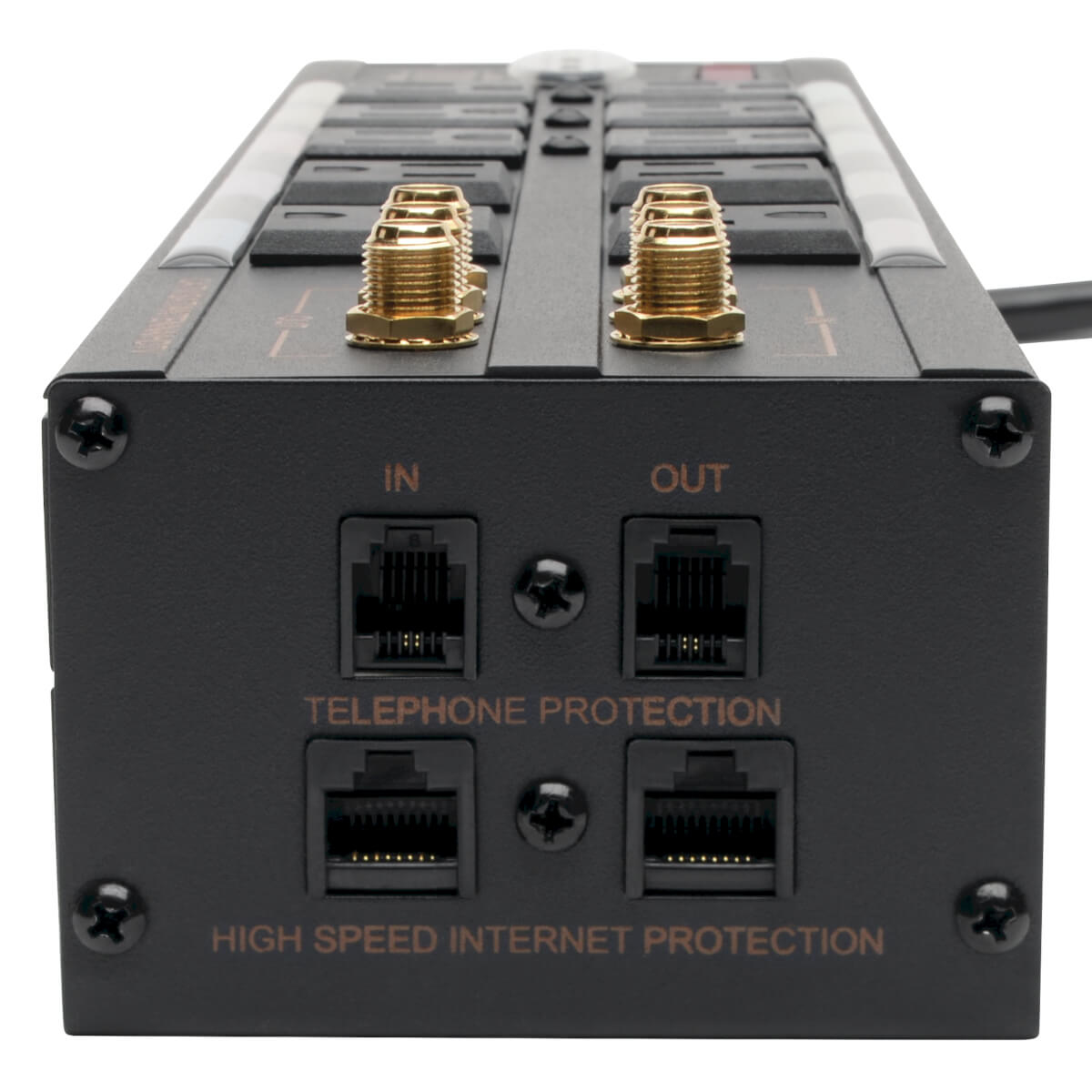

-1-line tel/modem and 1-line network (100BaseT, high-speed) surge protection (with included 6-ft. phone cord and 6-ft. network cable) safeguards personal video recorders (PVRs) on up to two lines simultaneously.

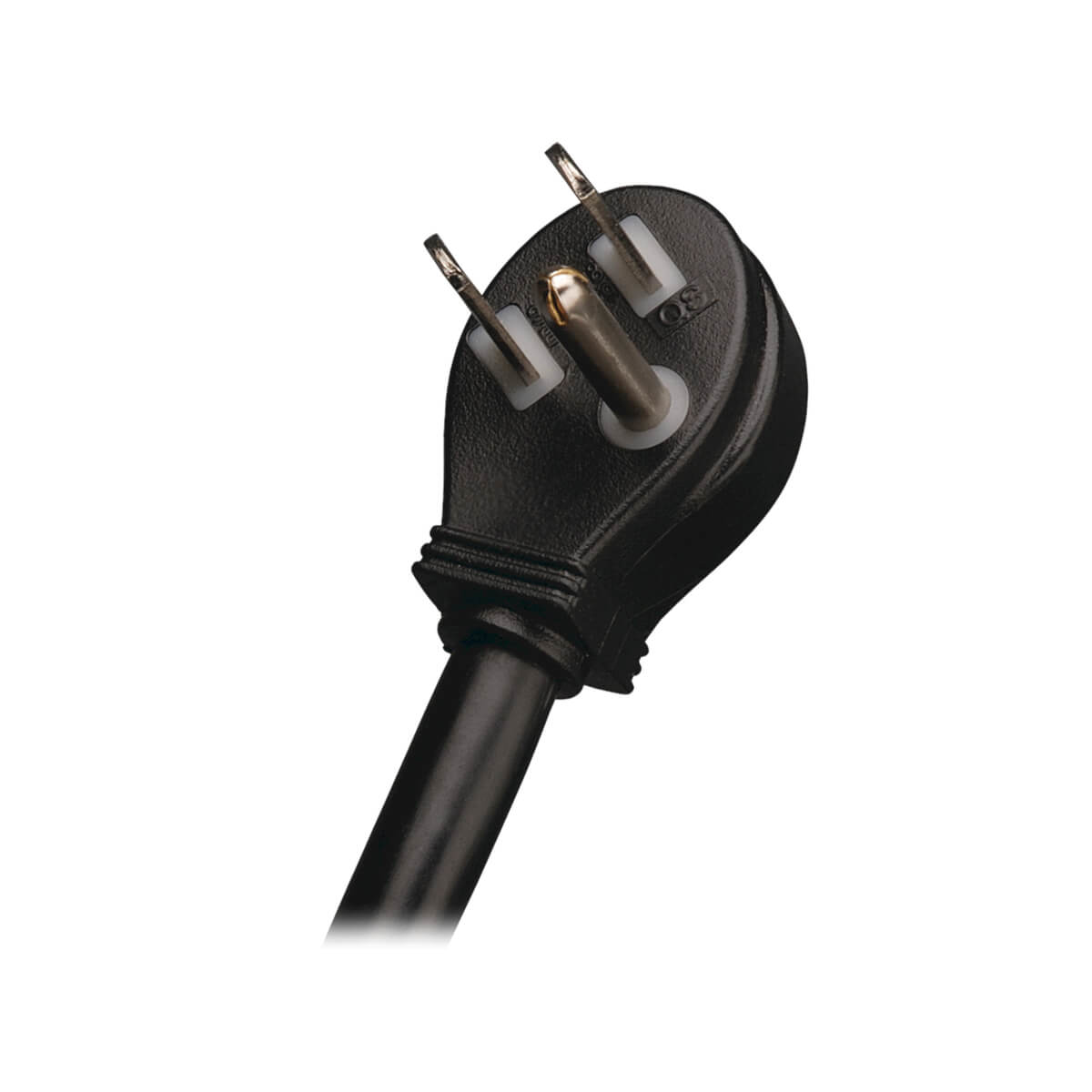

-8-ft. cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a home/business theater system.
-3 diagnostic LEDs alert user to protection, line power and ground status.

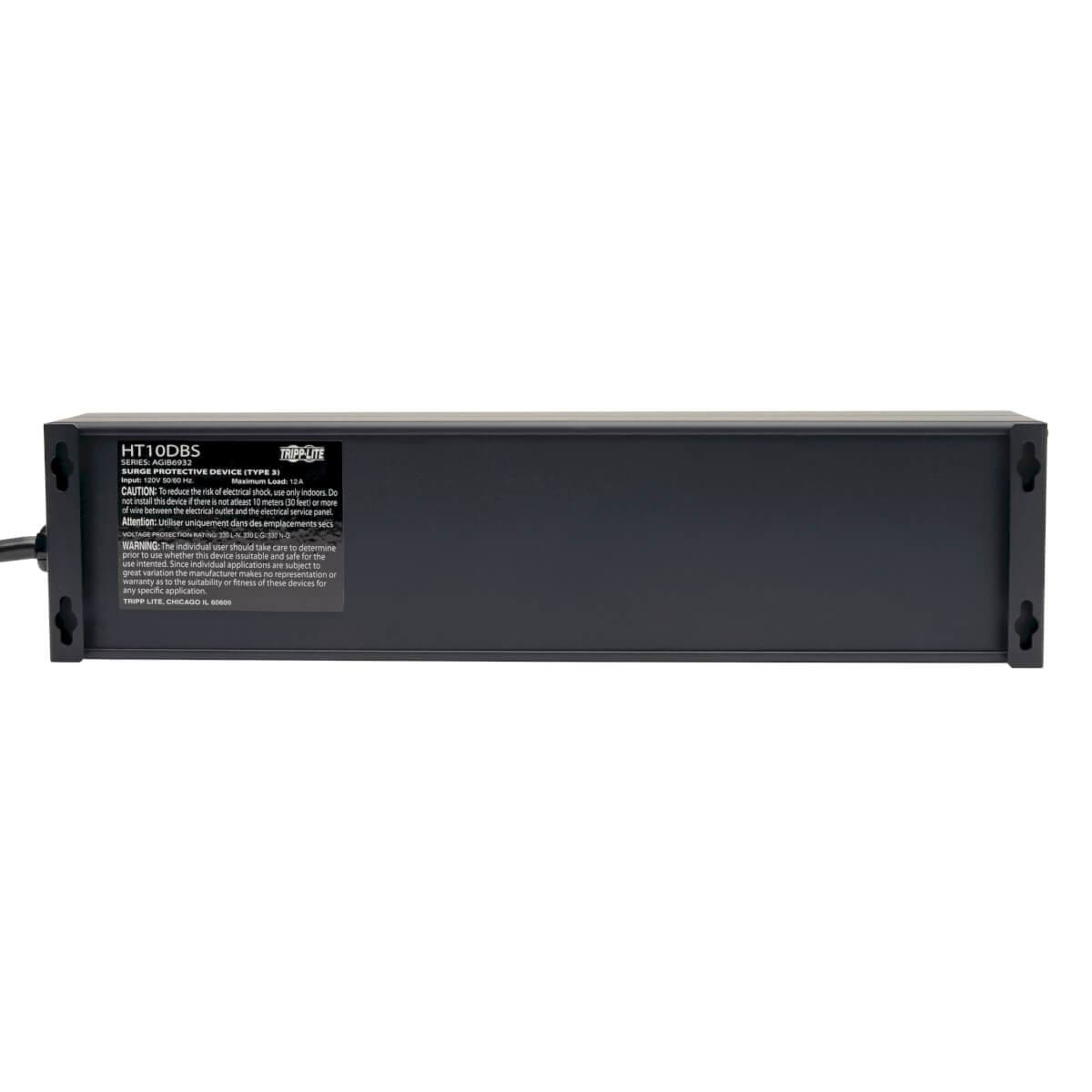

-Keyhole slots provide convenient wall or cabinet mounting.
-Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload.
-All-metal housing (black) stands up to the most demanding environments.
Products specifications
Attribute name | Attribute value |
---|
Master (outer) case GTIN (EAN/UPC) | 10037332121742 |
Master (outer) case weight | 30.2 lbs |
Peak power | 1440 W |
Width | 14.5" |
Height | 2.5" |
Weight | 3.59 lbs |
Cable Length | 94.5" |
Master (outer) case width | 10.1" |
Master (outer) case height | 17" |
Country of Origin | China |
Depth | 3.5" |
Master (outer) case length | 18.9" |
EMI/RFI noise filtering | 60 dB |
Telephone line protection | Yes |
Audio/video line protection | Yes |
Certification | UL1449/UL1363/UL497A/FCC Part 68/cUL |
Input connections | NEMA 5-15P |
Product color | Black |
Surge energy rating | 3570 J |
LED indicators | Yes |
Dimensions (WxDxH) | 0.787 x 2.24 x 14.3" |
Package depth | 2 AC outlet(s) |
Package weight | 4.61 lbs |
Package width | 5.7" |
Package height | 16.5" |
Quantity per master (outer) case | 6 pc(s) |
Weight (imperial) | 3.5 lbs |
AC outlets quantity | -30 - 50 °C |
Nominal input voltage | 120 V |
AC input frequency | 50 - 60 Hz |
