Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi1
Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi1
Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi2
Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi3
Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi4

Panorama Antennas TRNMG4-6-60 network antenna Omni-directional antenna TNC 26 dBi

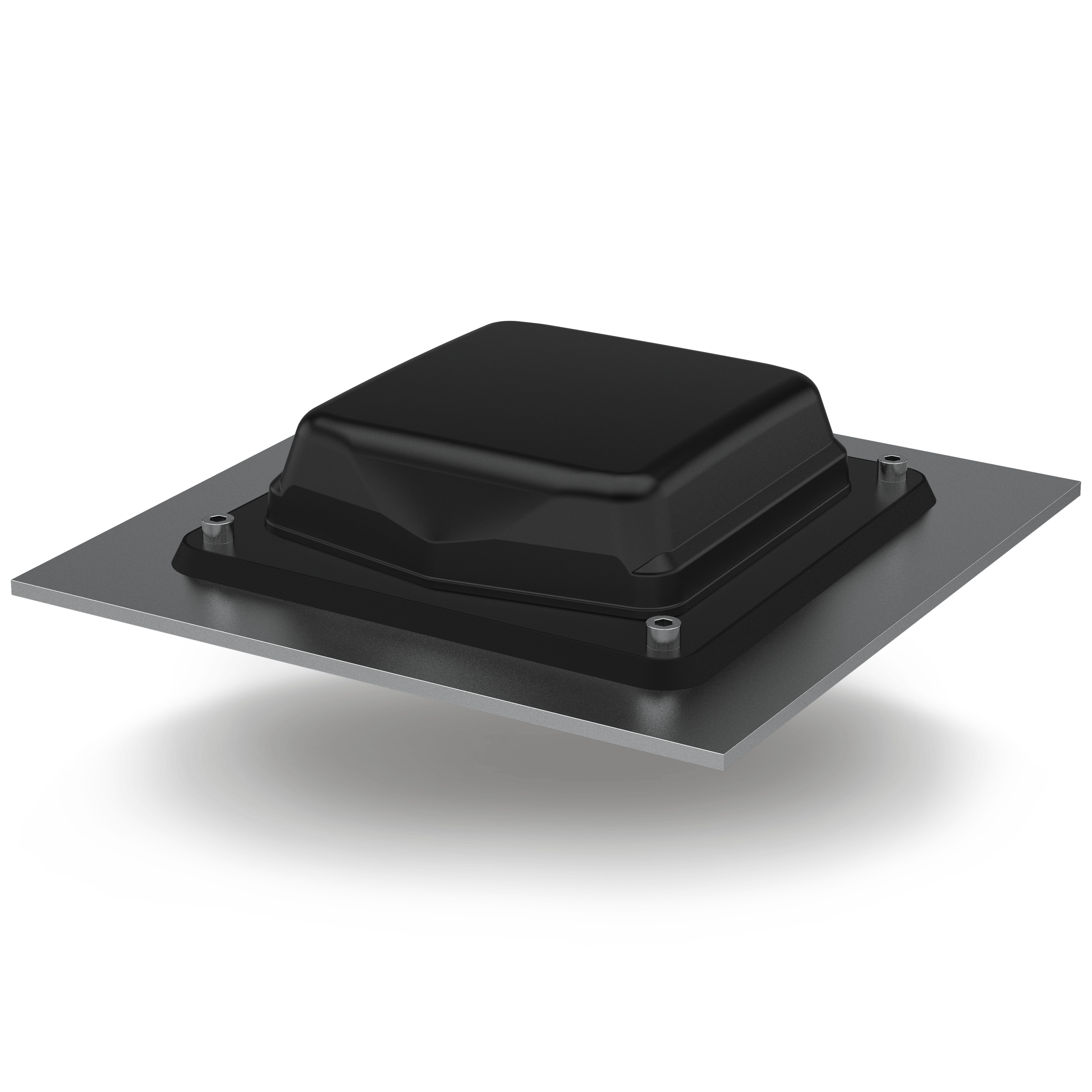

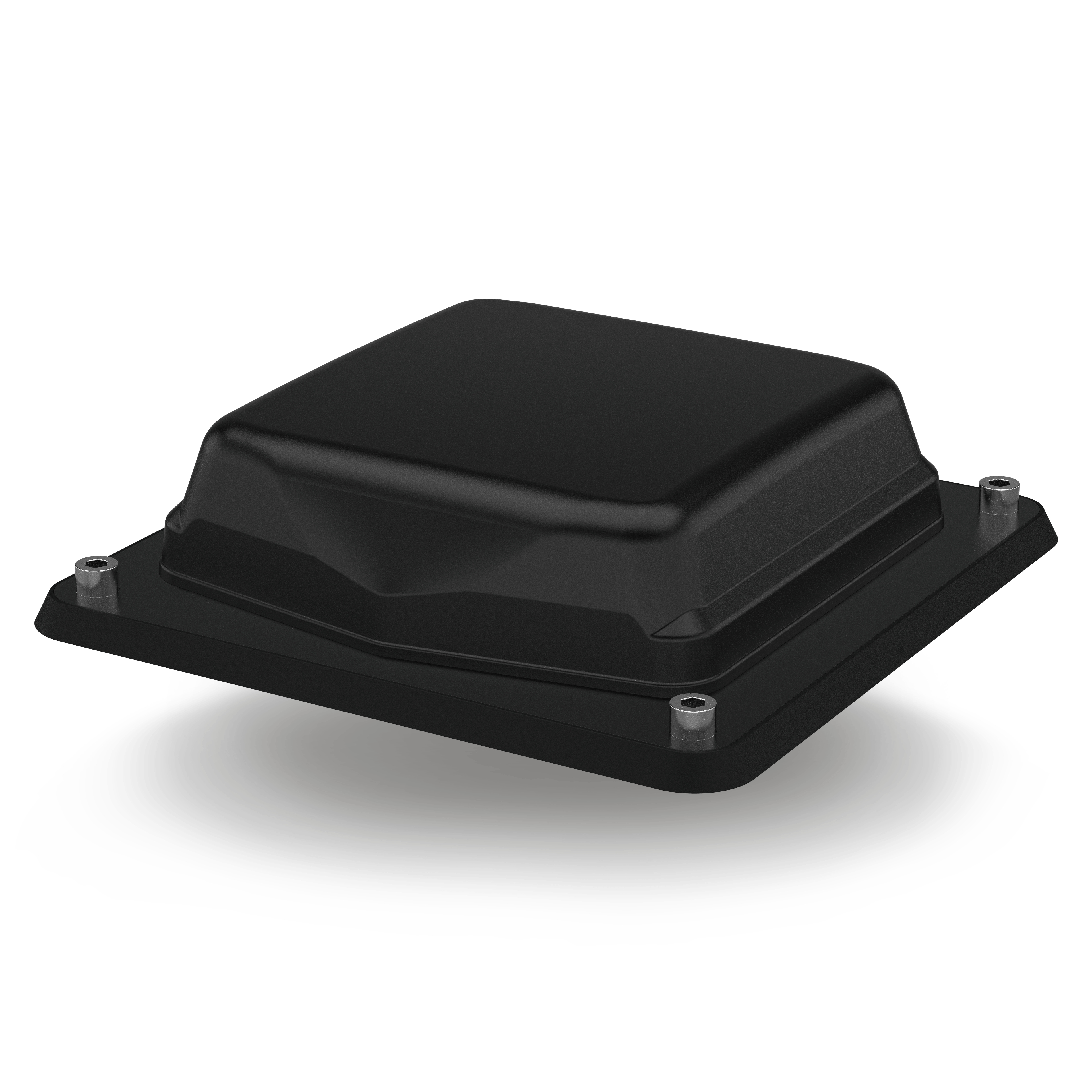

Panorama Antennas TRNMG4-6-60. Antenna gain level (max): 26 dBi. Antenna type: Omni-directional antenna, Antenna connector type: TNC, Product color: Black. Certification: EN45545-2 HL3. Width: 13.8" (350 mm), Depth: 13.8" (350 mm), Height: 3.35" (85 mm). 4G standard: LTE
Manufacturers: Panorama Antennas , PANORAMA ANTENNAS, INC.
SKU: 6725896
Manufacturer part number: TRNMG4-6-60
MSRP: $1,349.76
$1,165.51
A 4×4 MiMo cellular 617-960/1427-6000, L1/L2/L5 or L1 GPS/GNSS , up to 4×4 MiMo WiFi transit antenna.

The TRNM[X]4-6-60-[X] MiMo antenna series is designed for use on trains, trams and buses underground or overground. Incorporating four wide band elements covering the frequency range 617MHz to 6000MHz, the TRNM[X]4-6-60-[X] series is versatile and future proof. The TRNM[X]4-6-60-[X] series covers global 4G/5G frequencies with 4×4 MiMo, optional up to 4×4 MiMo Wifi 6e and optional GPS/GNSS.



  • Low Profile Transit Antenna
  • 4×4 MiMo 617-960/1427-6000MHz
  • Up to 4×4 MiMo WiFi 6e
  • Covers global 4G/5G frequencies
  • Optional active GPS/GNSS
  • Meets Railway Standards EN50155, EN45545-2 and EN50124-1
  • IP69K
  • Housed in a high impact
  • Flame retardant
  • Weatherproofing
  • Trains
  • Trams
  • Underground or overground
  • Buses
A 4×4 MiMo cellular 617-960/1427-6000, L1/L2/L5 or L1 GPS/GNSS , up to 4×4 MiMo WiFi transit antenna.

The TRNM[X]4-6-60-[X] MiMo antenna series is designed for use on trains, trams and buses underground or overground. Incorporating four wide band elements covering the frequency range 617MHz to 6000MHz, the TRNM[X]4-6-60-[X] series is versatile and future proof. The TRNM[X]4-6-60-[X] series covers global 4G/5G frequencies with 4×4 MiMo, optional up to 4×4 MiMo Wifi 6e and optional GPS/GNSS.



  • Low Profile Transit Antenna
  • 4×4 MiMo 617-960/1427-6000MHz
  • Up to 4×4 MiMo WiFi 6e
  • Covers global 4G/5G frequencies
  • Optional active GPS/GNSS
  • Meets Railway Standards EN50155, EN45545-2 and EN50124-1
  • IP69K
  • Housed in a high impact
  • Flame retardant
  • Weatherproofing
  • Trains
  • Trams
  • Underground or overground
  • Buses

Products specifications

Attribute name Attribute value
Width 13.8"
Depth 13.8"
Height 3.35"
Antenna Type Omni-directional antenna
4G standard LTE
Design
Certification EN45545-2 HL3
Technical details
Product color Black
Features
International Protection (IP) code IP69K
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Antenna
Antenna gain level (max) 26 dBi
Antenna connector type TNC
*
*
*

Products specifications

Attribute name Attribute value
Width 13.8"
Depth 13.8"
Height 3.35"
Antenna Type Omni-directional antenna
4G standard LTE
Design
Certification EN45545-2 HL3
Technical details
Product color Black
Features
International Protection (IP) code IP69K
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Antenna
Antenna gain level (max) 26 dBi
Antenna connector type TNC
