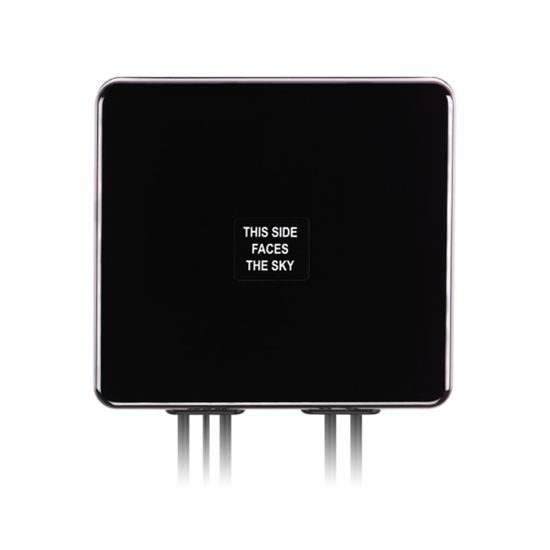

IoT Antenna for First Responder Applications
The?5in1 Adhesive Mount Guardian is the go-to IoT Antenna for First Responder Applications. A popular choice for First Net applications because of its powerful MIMO technology for worldwide 4G LTE bands plus Wi-Fi, plus GPS-GLONASS-GALILEO-BeiDou for location accuracy. This enables designers to cover a wide range of technologies by installing a single antenna. Furthermore, installation is painless because?the antenna can be adhered to the inside panel of the vehicle and reduces the need to cut a hole in the roof. This also means that less cable is needed, thus maximizing the performance of the antenna.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
5.28" |
|
Depth
|
5.75" |
|
Height
|
0.787" |
|
Weight
|
22.6 oz |
|
Waterproof
|
Yes |
|
4G standard
|
LTE |
|
Polarization
|
Linear/RHCP polarization |
|
Voltage Standing Wave Ratio (VSWR)
|
2:1 |
|
Compliance certificates
|
RoHS |
|
Navigation systems supported
|
GPS, Glonass, Galileo |
|
Antenna Type
|
MIMO directional antenna |
|
Cable Length
|
39.4" |
|
Product color
|
Black |
|
International Protection (IP) code
|
IP67 |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Wi-Fi band
|
Dual-band (2.4 GHz / 5.8 GHz) |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Frequency band
|
0.6 - 6 GHz |
|
Antenna gain level (max)
|
3.06 dBi |
|
Antenna connector type
|
SMA |
