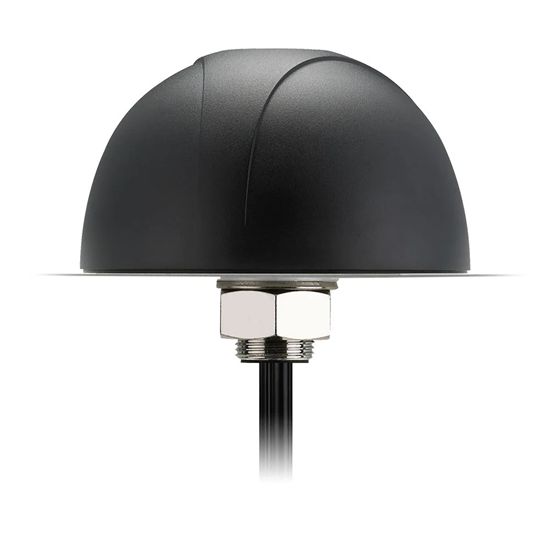

The Pantheon MA750.B antenna is an omni-directional, heavy-duty, fully IP67 rated external M2M antenna for use in telematics, transportation, and remote monitoring applications. This unique antenna delivers powerful MIMO antenna technology for LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/Glonass for next generation high bandwidth telematics systems. New fleet management and video location technology allows for real-time video uplink and downlink. High efficiency high gain MIMO antennas are necessary to achieve the high signal to noise ratio and throughput required to solve these challenges. Taoglas has packed 5 high efficiency and gain antennas in an extremely robust IP67 direct mount antenna package with good isolation (10dB+)*. The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32 ' and 9.70 "), critical for buses, trains, and other commercial transport applications.
Products specifications
| Attribute name |
Attribute value |
|
Weight
|
2.56 lbs |
|
Diameter
|
5.63" |
|
Waterproof
|
Yes |
|
Operating frequency
|
698 - 3500 MHz |
|
3G standards
|
UMTS |
|
4G standard
|
LTE |
|
Polarization
|
Linear polarization |
|
Voltage Standing Wave Ratio (VSWR)
|
2 |
|
Antenna gain (2.4 GHz)
|
2.61 dBi |
|
Antenna gain (5 GHz)
|
3.61 dBi |
|
Compliance certificates
|
REACH, RoHS |
|
Wi-fi frequency range
|
2.4 - 5.85 GHz |
|
Power efficiency (Wi-Fi)
|
48.81 % |
|
Housing Material
|
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Zinc |
|
Antenna Type
|
Omni-directional antenna |
|
Power Consumption
|
15 mA |
|
Product color
|
Black |
|
International Protection (IP) code
|
IP67 |
|
Quantity per pack
|
1 pc(s) |
|
Connector gender
|
Male |
|
Networking standards
|
IEEE 802.11n, IEEE 802.11ac |
|
Input voltage
|
3 V |
|
Power source type
|
DC |
|
Wi-Fi standards
|
Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|
Wi-Fi band
|
Dual-band (2.4 GHz / 5 GHz) |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Storage temperature (T-T)
|
-40 - 90 °C |
|
Frequency band
|
0.698 - 5.85 GHz |
|
Antenna gain level (max)
|
3.61 dBi |
|
Antenna connector type
|
SMA/RP-SMA |
