Overview

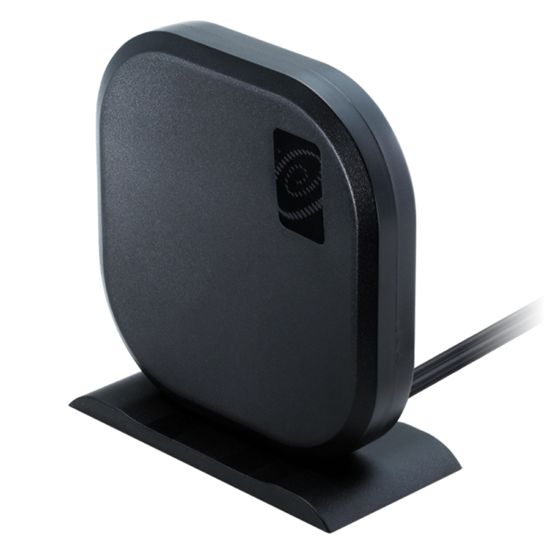

Taoglas Gemini LMA101 is a 2* 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent self-interference and the low loss CFD-200 cables are used to keep efficiency high over longer cable lengths of up to 5 meters. This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust external enclosure is fully IP67 rated.
Typical Applications include:
HD Real-time Streaming Video over LTE
Intelligent Transport Systems
Digital Signage and HD Broadcast Systems
Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
6.46" |
|
Depth
|
1.44" |
|
Height
|
6.46" |
|
Weight
|
14.1 oz |
|
Polarization
|
Linear polarization |
|
Voltage Standing Wave Ratio (VSWR)
|
2:1 |
|
Compliance certificates
|
RoHS, REACH |
|
Antenna Type
|
MIMO directional antenna |
|
Cable Length
|
39.4" |
|
Product color
|
Black |
|
International Protection (IP) code
|
IP67 |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Connector gender
|
Male |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Frequency band
|
0.6 - 6 GHz |
|
Antenna gain level (max)
|
3 dBi |
|
Antenna connector type
|
RP-SMA |
