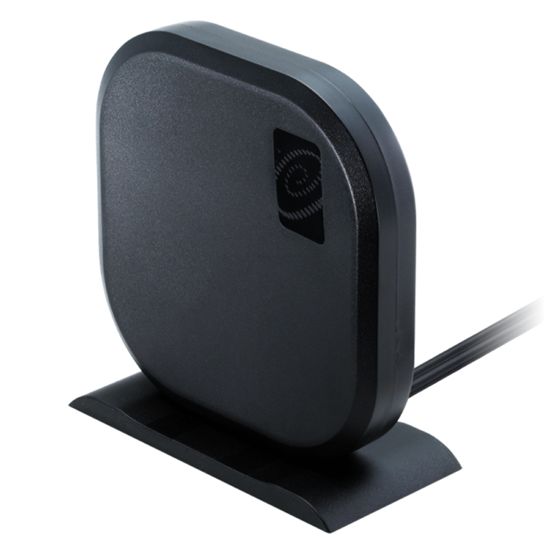

High Efficiency LTE MIMO Antennas
The Gemini LTE 4G MIMO 2X2 includes two embedded high-efficiency LTE MIMO antennas. It is a robust external antenna that is fully IP65 waterproof for use with all 4G/3G/2G MIMO cellular routers and Access points worldwide. The antenna elements operate at all common and 4G LTE bands worldwide; 698-960MHz, 1710-2170MHz, 2490-2690MHz, which also include the 3G and 2G bands, meaning the antenna can also be used as fallback on 3G or 2G applications. High isolation and low ECC between the two embedded antennas prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths up to 5 meters. This unique antenna offers two methods for easy installation, both indoors and outdoors. A bracket on the back of the antenna enables easy wall installation, keeping your work area clean and spacious. The antenna can also be placed on a flat surface using the stand holder for easy and quick installation.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
6.46" |
|
Depth
|
6.46" |
|
Height
|
1.44" |
|
Weight
|
14.1 oz |
|
Waterproof
|
Yes |
|
4G standard
|
LTE |
|
Ultraviolet (UV) resistant
|
Yes |
|
Polarization
|
Linear polarization |
|
Voltage Standing Wave Ratio (VSWR)
|
2:1 |
|
Compliance certificates
|
RoHS |
|
Antenna Type
|
MIMO directional antenna |
|
Cable Length
|
39.4" |
|
Product color
|
Black |
|
Protection features
|
Heat resistant |
|
International Protection (IP) code
|
IP65 |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Connector gender
|
Male |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Frequency band
|
0.7 - 3 GHz |
|
Antenna gain level (max)
|
5 dBi |
|
Antenna connector type
|
SMA |
