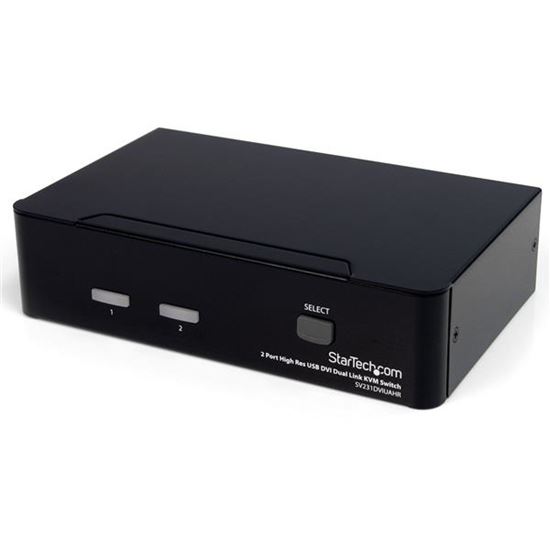

The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments.
This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Dual Link DVI interface supports high resolutions of up to 2560x1600 allowing you to take full advantage of your graphics card capabilities
- USB 2.0 hub provides the convenience of sharing USB peripherals (external hard drive, webcam, etc.) between computers and saves the cost of purchasing duplicate peripherals
- Rugged solid steel features durable design for long-lasting performance, even in harsh environments
Products specifications
| Attribute name |
Attribute value |
|
Width
|
3.94" |
|
Depth
|
6.26" |
|
Height
|
1.57" |
|
Weight
|
22.6 oz |
|
Housing Material
|
Steel |
|
Compatible power plug types
|
EU, UK, US |
|
Headphone outputs
|
3 |
|
USB connector type
|
USB Type-A |
|
Hot keys
|
Yes |
|
Console ports
|
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
|
Console USB ports quantity
|
1 |
|
Harmonized System (HS) code
|
85176200 |
|
Number of microphone inputs
|
3 |
|
Daisy chain
|
No |
|
Audio support
|
Yes |
|
IP control
|
No |
|
Compliance certificates
|
RoHS |
|
Certification
|
CE, FCC |
|
Product color
|
Black |
|
Sustainability certificates
|
RoHS |
|
Input current
|
0.8 A |
|
Output voltage
|
12 V |
|
Maximum resolution
|
2560 x 1600 pixels |
|
Output current
|
1.5 A |
|
Rubber feet
|
Yes |
|
Package width
|
7.32" |
|
Package depth
|
9.84" |
|
Package height
|
3.98" |
|
Package weight
|
2.45 lbs |
|
Manual
|
Yes |
|
AC adapter included
|
Yes |
|
Keyboard port type
|
USB |
|
Video port type
|
DVI-I |
|
Mouse port type
|
USB |
|
Rack mounting
|
No |
|
USB 2.0 ports quantity
|
4 |
|
DC-in jack
|
Yes |
|
USB version
|
2.0 |
|
Number of computers controlled
|
2 |
|
Input voltage
|
110-240 V |
|
Power consumption (typical)
|
18 W |
|
AC input voltage
|
110-240 V |
|
Power plug type
|
Type M |
|
Operating temperature (T-T)
|
0 - 40 °C |
|
Storage temperature (T-T)
|
-20 - 60 °C |
|
Operating relative humidity (H-H)
|
0 - 80 % |
|
On Screen Display (OSD)
|
No |
