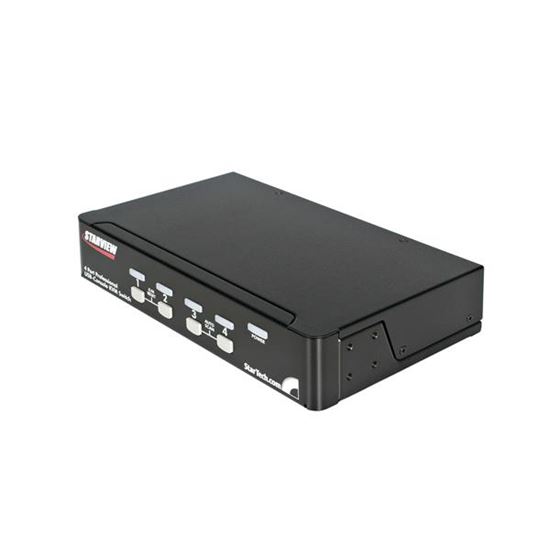

Manage all your computers from one convenient location with a StarTech.com KVM switch. The StarTech.com SV431DUSB let you connect 4 USB or PS/2 computers using only one USB keyboard, mouse, and monitor. Convenient pushbutton and hot-key commands allow for quick, reliable switching between your systems. Manual and Auto scan modes are supported. Our slim design needs only 1U in your cabinet and uses rear cable connections for maximum space efficiency.
The StarTech.com Advantage
-Optional rack-mountable bracket.
-Powerful features that increase usability.
-Ultra-compatible.
-Unparalleled reliability.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
5.12" |
|
Depth
|
8.66" |
|
Height
|
1.69" |
|
Weight
|
3.31 lbs |
|
Housing Material
|
Steel |
|
USB connector type
|
USB Type-A |
|
Hot keys
|
Yes |
|
Console ports
|
VGA (D-Sub) |
|
Console USB ports quantity
|
4 |
|
Daisy chain
|
No |
|
Audio support
|
No |
|
IP control
|
No |
|
Built-in display
|
No |
|
Product color
|
Black |
|
Rack capacity
|
1U |
|
Plug and Play
|
Yes |
|
Input current
|
0.2 A |
|
Output voltage
|
9 V |
|
Maximum resolution
|
1920 x 1440 pixels |
|
Output current
|
0.6 A |
|
Dimensions (WxDxH)
|
5.12 x 8.66 x 1.69" |
|
Package width
|
3.46" |
|
Package depth
|
16.1" |
|
Package height
|
8.35" |
|
Package weight
|
3.75 lbs |
|
Manual
|
Yes |
|
AC adapter included
|
Yes |
|
Keyboard port type
|
USB, PS/2 |
|
Video port type
|
VGA |
|
Mouse port type
|
USB, PS/2 |
|
Rack mounting
|
Yes |
|
DC-in jack
|
Yes |
|
Number of computers controlled
|
4 |
|
Input voltage
|
110-240 V |
|
Power consumption (typical)
|
5.4 W |
|
AC input voltage
|
110-240 V |
|
Power plug type
|
Type M |
|
Ports quantity
|
4 |
|
Number of users
|
1 user(s) |
|
Operating temperature (T-T)
|
5 - 40 °C |
|
Storage temperature (T-T)
|
-20 - 60 °C |
|
Operating relative humidity (H-H)
|
0 - 80 % |
|
On Screen Display (OSD)
|
No |
