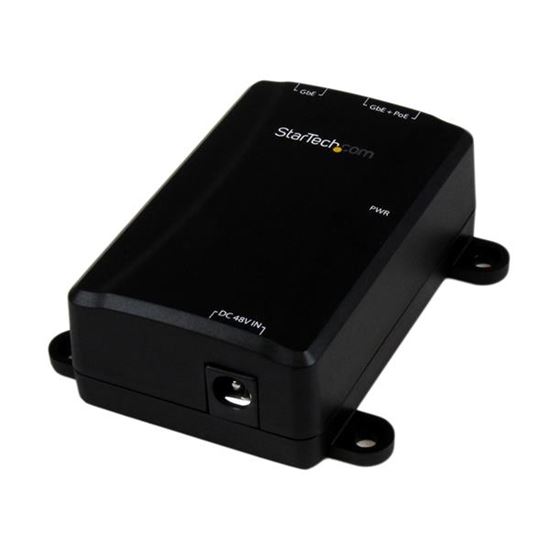

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Products specifications
| Attribute name |
Attribute value |
|
Weight
|
1.83 oz |
|
Power cord included
|
Yes |
|
Harmonized System (HS) code
|
85044095 |
|
Certification
|
ROHS, CE, FCC |
|
Product color
|
Black |
|
Plug and Play
|
Yes |
|
LED indicators
|
Power |
|
Input current
|
0.75 A |
|
Output power
|
30 W |
|
Output current
|
0.64 A |
|
Dimensions (WxDxH)
|
2.48 x 2.76 x 0.984" |
|
Package width
|
9.06" |
|
Package height
|
2.99" |
|
Package weight
|
35.1 oz |
|
Manual
|
Yes |
|
Duplex system
|
Full |
|
Networking standards
|
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
|
Cabling technology
|
10Base-T, 100Base-TX, 1000Base-T |
|
Maximum operating distance
|
3937" |
|
Ethernet LAN (RJ-45) ports
|
2 |
|
DC-in jack
|
Yes |
|
Input voltage
|
100 - 240 V |
|
Power over Ethernet (PoE) voltage
|
48 V |
|
Cable types supported
|
Cat5 |
|
Ethernet interface type
|
Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates
|
10,100,1000 Mbit/s |
|
Operating temperature (T-T)
|
0 - 45 °C |
|
Storage temperature (T-T)
|
-40 - 85 °C |
|
Operating relative humidity (H-H)
|
10 - 90 % |
|
Power over Ethernet (PoE)
|
Yes |
