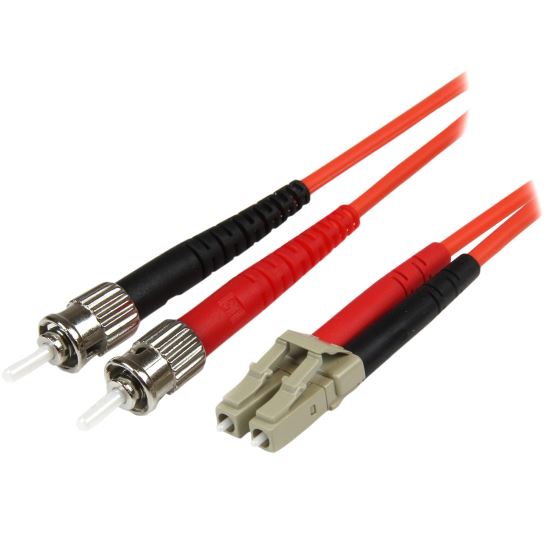

StarTech.com 50FIBLCST10 InfiniBand/fibre optic cable 393.7" (10 m) LC ST Orange

StarTech.com 50FIBLCST10. Cable length: 393.7" (10 m), Fiber optic type: OM2, Connector 1: LC, Connector 2: ST, Core diameter: 50 µm, Full duplex
Manufacturer: StarTech.com
SKU: STC50FIBLCST10
Manufacturer part number: 50FIBLCST10
UPC: 0065030849722
$44.08
Connect fiber network devices for high-speed transfers with LSZH rated cable

The 50FIBLCST10 10m LSZH LC to ST Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

The StarTech.com Advantage



  • 1x LC MM male connector
  • 1x ST MM male connector
  • OM2 (50/125) 500MHz multimode fiber
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors
Connect fiber network devices for high-speed transfers with LSZH rated cable

The 50FIBLCST10 10m LSZH LC to ST Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

The StarTech.com Advantage



  • 1x LC MM male connector
  • 1x ST MM male connector
  • OM2 (50/125) 500MHz multimode fiber
  • LSZH (Low-Smoke, Zero-Halogen) cable jacket
  • Attenuation loss meets or exceeds industry standards
  • Molded connectors

Products specifications

Attribute name Attribute value
Weight 3.53 oz
Cable Length 393.7"
Master (outer) case length 17.6"
Master (outer) case width 16.4"
Master (outer) case height 15.8"
Harmonized System (HS) code 85447000
Compliance certificates RoHS, CE
Technical details
Product color Orange
Sustainability certificates RoHS
Features
Fiber mode structure Multi-mode
Connector 1 gender Male
Connector 2 gender Male
Core diameter 50 µm
Data transfer rate 10 Gbit/s
Full duplex Yes
Cladding diameter 125 µm
Connector 1 LC
Connector 2 ST
Jacket material Low smoke zero halogen (LSZH)
Fiber optic type OM2
Packaging data
Package width 7.87"
Package depth 8.66"
Package height 1.1"
Package weight 5.11 oz
Logistics data
Quantity per master (outer) case 80 pc(s)
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -20 - 60 °C
*
*
*
