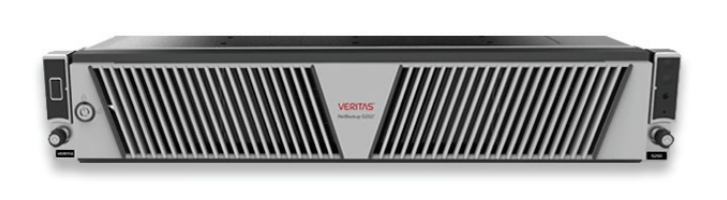

Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM1
Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM1 Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM2 Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM3 Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM4 Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM5

Veritas NetBackup 5250 server 206 TB Rack (1U) Intel Xeon Silver 4214 2.2 GHz DDR4-SDRAM

Veritas NetBackup 5250. Processor family: Intel Xeon Silver, Processor frequency: 2.2 GHz, Processor model: 4214. Internal memory type: DDR4-SDRAM. Total storage capacity: 206 TB, HDD interface: Serial Attached SCSI (SAS). Ethernet LAN. Redundant power supply (RPS) support. Chassis type: Rack (1U)
Manufacturers: VERITAS TECHNOLOGIES LLC , Veritas
SKU: 7716365
Manufacturer part number: 29743-M3
$33,475.00
The Veritas NetBackup™ 5250 Appliance is a complete NetBackup data protection solution that delivers the capacity, efficiency and performance to reduce costs and meet departmental service-level agreements (SLAs).
Powered by Intel, the NetBackup 5250 is a fully integrated backup appliance with expandable storage and intelligent deduplication for physical, virtual and cloud environments. Veritas appliance hardened security features protect against intrusions and malware to keep your data protected and available at all times.



  • Optimized for departmental workloads—Starting at 10 TB and expandable up to 442 TB usable capacity, the NetBackup 5250 is ideal for enterprise data centers
  • World-class performance—Using the power of multi-core Intel Xeon Processor technology, the NetBackup 5250 delivers 40 percent more performance than the previous generation departmental appliance
  • Hardened security—Veritas Appliance OS hardening combined with Symantec™ Data Center Security protects against zero-day attacks and malicious insider threats
  • Fast transfer rates to the cloud—Wide Area Network (WAN) optimization speeds backups to the cloud and off-site replication
  • High bandwidth networking—Up to six 25 Gb Optical Ethernet ports
  • Operational simplicity—Power-on installation wizard lets you start backing up in minutes
  • Resilient hardware architecture—Multiple data paths, redundant hot swap power supplies, fan modules and hot pluggable data disks deliver greater data protection and system availability
  • Superior monitoring and reporting—Remote diagnostics and AI/ML predictive monitoring ensures NetBackup Appliances are working at top efficiency and anticipates needs before they become issues
  • Veritas NetBackup Copilot for Oracle®—Enables collaborative database backup and recovery
  • Veritas NetBackup Universal Shares®—Ingest any kind of data via NFS or CIFS (SMB) shares with the NetBackup deduplication engine for extreme storage efficiency
The Veritas NetBackup™ 5250 Appliance is a complete NetBackup data protection solution that delivers the capacity, efficiency and performance to reduce costs and meet departmental service-level agreements (SLAs).
Powered by Intel, the NetBackup 5250 is a fully integrated backup appliance with expandable storage and intelligent deduplication for physical, virtual and cloud environments. Veritas appliance hardened security features protect against intrusions and malware to keep your data protected and available at all times.



  • Optimized for departmental workloads—Starting at 10 TB and expandable up to 442 TB usable capacity, the NetBackup 5250 is ideal for enterprise data centers
  • World-class performance—Using the power of multi-core Intel Xeon Processor technology, the NetBackup 5250 delivers 40 percent more performance than the previous generation departmental appliance
  • Hardened security—Veritas Appliance OS hardening combined with Symantec™ Data Center Security protects against zero-day attacks and malicious insider threats
  • Fast transfer rates to the cloud—Wide Area Network (WAN) optimization speeds backups to the cloud and off-site replication
  • High bandwidth networking—Up to six 25 Gb Optical Ethernet ports
  • Operational simplicity—Power-on installation wizard lets you start backing up in minutes
  • Resilient hardware architecture—Multiple data paths, redundant hot swap power supplies, fan modules and hot pluggable data disks deliver greater data protection and system availability
  • Superior monitoring and reporting—Remote diagnostics and AI/ML predictive monitoring ensures NetBackup Appliances are working at top efficiency and anticipates needs before they become issues
  • Veritas NetBackup Copilot for Oracle®—Enables collaborative database backup and recovery
  • Veritas NetBackup Universal Shares®—Ingest any kind of data via NFS or CIFS (SMB) shares with the NetBackup deduplication engine for extreme storage efficiency
Products specifications
Attribute nameAttribute value
Width19"
Depth30.3"
Height3.5"
Maximum internal memory512 GB
HDD interfaceSerial Attached SCSI (SAS)
Memory clock speeds supported by processor2400 MHz
Tcase77 °C
Processor generation2nd Generation Intel® Xeon® Scalable
Number of processors installed2
Power supply input voltage100 - 240 V
Power supply input frequency50 / 60 Hz
Supported HDD sizes2.5,3.5"
Compliance certificatesBIS, BSMI, CCC, CE, Federal Communications Commission (FCC), IRAM, KCC, Norma Oficial Mexicana (NOM), REACH, RoHS, VCCI, WEEE
Design
Chassis typeRack (1U)
Technical details
Product colorBlack
Features
Internal memory typeDDR4-SDRAM
Hot-swapYes
Noise level70 dB
Performance
Ethernet LANYes
Processor frequency2.2 GHz
Optical drive typeNo
Ports & interfaces
USB 2.0 ports quantity1
Serial ports quantity1
VGA (D-Sub) ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Power
Power consumption (typical)240 W
Redundant power supply (RPS) supportYes
Operational conditions
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)20 - 80 %
Storage relative humidity (H-H)8 - 90 %
Operating altitude-1181.1 - 118110.2"
Memory
Memory slots16x DIMM
Storage
RAID supportYes
RAID levels1, 6
Total storage capacity206 TB
Processor
Processor familyIntel Xeon Silver
Processor manufacturerIntel
Processor model4214
Processor boost frequency3.2 GHz
Processor cores12
Processor threads24
Processor cache16.5 MB
ECC supported by processorYes
Processor package size76 x 56.5 mm
Scalability2S
Thermal Design Power (TDP)85 W
Maximum internal memory supported by processor1 TB
Processor special features
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Intel 64Yes
Intel Trusted Execution TechnologyYes
Intel TSX-NIYes
Intel Virtualization Technology (VT-x)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes48
Memory types supported by processorDDR4-SDRAM
*
*
*
Products specifications
Attribute nameAttribute value
Width19"
Depth30.3"
Height3.5"
Maximum internal memory512 GB
HDD interfaceSerial Attached SCSI (SAS)
Memory clock speeds supported by processor2400 MHz
Tcase77 °C
Processor generation2nd Generation Intel® Xeon® Scalable
Number of processors installed2
Power supply input voltage100 - 240 V
Power supply input frequency50 / 60 Hz
Supported HDD sizes2.5,3.5"
Compliance certificatesBIS, BSMI, CCC, CE, Federal Communications Commission (FCC), IRAM, KCC, Norma Oficial Mexicana (NOM), REACH, RoHS, VCCI, WEEE
Design
Chassis typeRack (1U)
Technical details
Product colorBlack
Features
Internal memory typeDDR4-SDRAM
Hot-swapYes
Noise level70 dB
Performance
Ethernet LANYes
Processor frequency2.2 GHz
Optical drive typeNo
Ports & interfaces
USB 2.0 ports quantity1
Serial ports quantity1
VGA (D-Sub) ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Power
Power consumption (typical)240 W
Redundant power supply (RPS) supportYes
Operational conditions
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)20 - 80 %
Storage relative humidity (H-H)8 - 90 %
Operating altitude-1181.1 - 118110.2"
Memory
Memory slots16x DIMM
Storage
RAID supportYes
RAID levels1, 6
Total storage capacity206 TB
Processor
Processor familyIntel Xeon Silver
Processor manufacturerIntel
Processor model4214
Processor boost frequency3.2 GHz
Processor cores12
Processor threads24
Processor cache16.5 MB
ECC supported by processorYes
Processor package size76 x 56.5 mm
Scalability2S
Thermal Design Power (TDP)85 W
Maximum internal memory supported by processor1 TB
Processor special features
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Intel 64Yes
Intel Trusted Execution TechnologyYes
Intel TSX-NIYes
Intel Virtualization Technology (VT-x)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes48
Memory types supported by processorDDR4-SDRAM
