Description

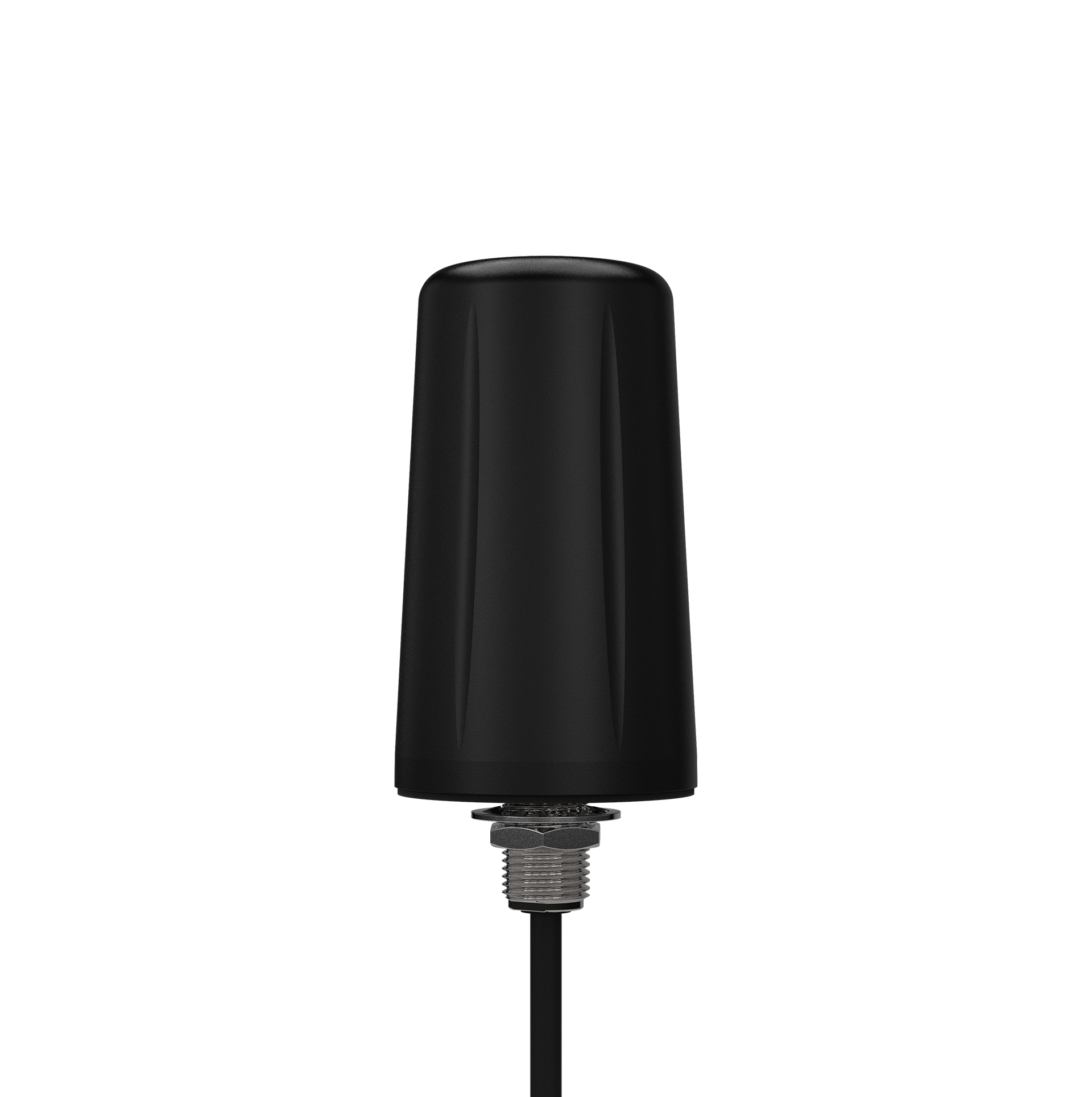

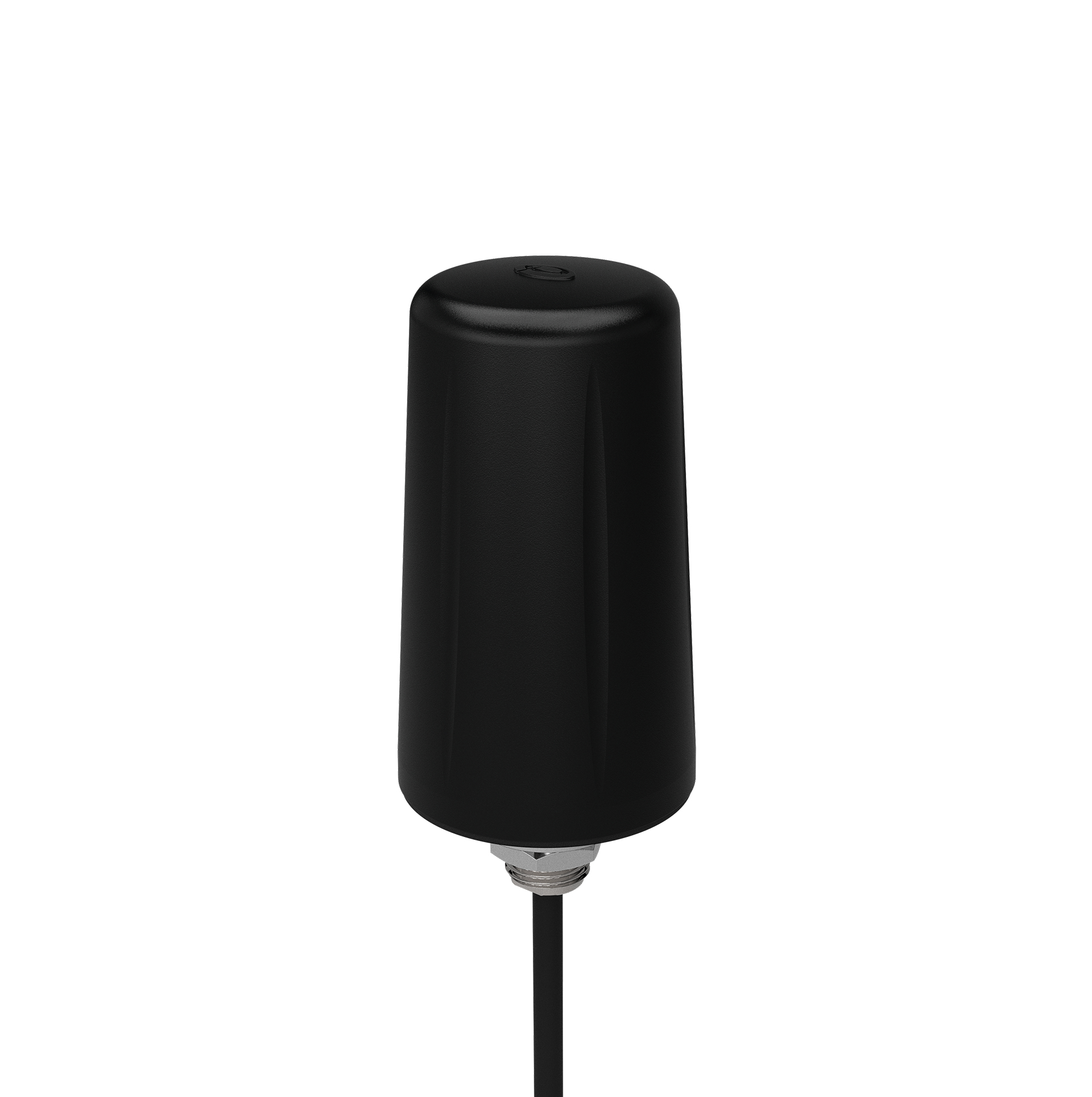

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).
Products specifications
| Attribute name |
Attribute value |
|
Width
|
1.89" |
|
Depth
|
1.89" |
|
Height
|
3.23" |
|
Antenna Type
|
Omni-directional antenna |
|
Cable Length
|
196.9" |
|
Gain
|
9 dBi |
|
Product color
|
Black |
|
International Protection (IP) code
|
IP66 |
|
Connector gender
|
Male |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Frequency band
|
0.617 - 0.96 / 1.71 - 6 GHz |
|
Antenna gain level (max)
|
9 dBi |
|
Antenna connector type
|
SMA |
