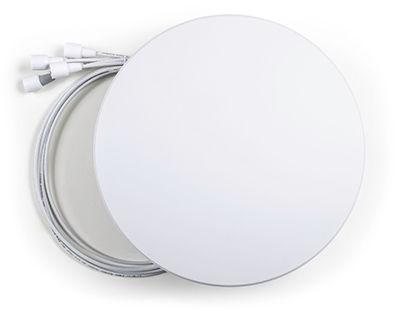

The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.
Products specifications
| Attribute name |
Attribute value |
|
Vertical beam width (2.4 GHz)
|
60 ° |
|
Vertical beam width (5 GHz)
|
60 ° |
|
Height
|
1.46" |
|
Diameter
|
8.86" |
|
Vertical beam width
|
60 ° |
|
Horizontal beam width (2.4 GHz)
|
360 ° |
|
Horizontal beam width (5 GHz)
|
360 ° |
|
Weight
|
20.8 oz |
|
Antenna Type
|
Omni-directional antenna |
|
Harmonized System (HS) code
|
85177100 |
|
Product color
|
White |
|
Operating relative humidity (H-H)
|
5 - 93 % |
|
Operating temperature (T-T)
|
0 - 40 °C |
|
Frequency band
|
2.4/5 GHz |
|
Antenna gain level (max)
|
2:1 |
|
Antenna connector type
|
RP-TNC |
