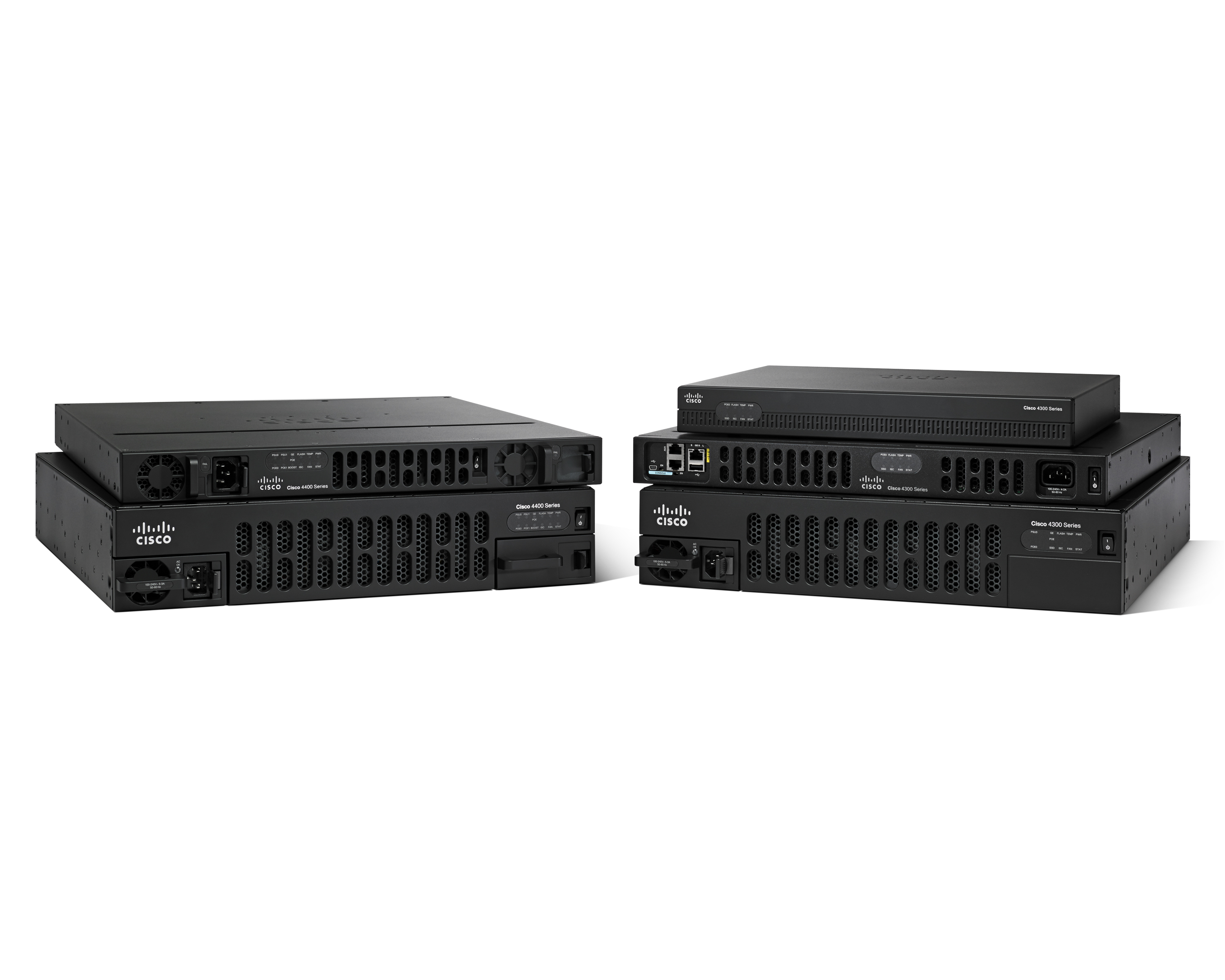

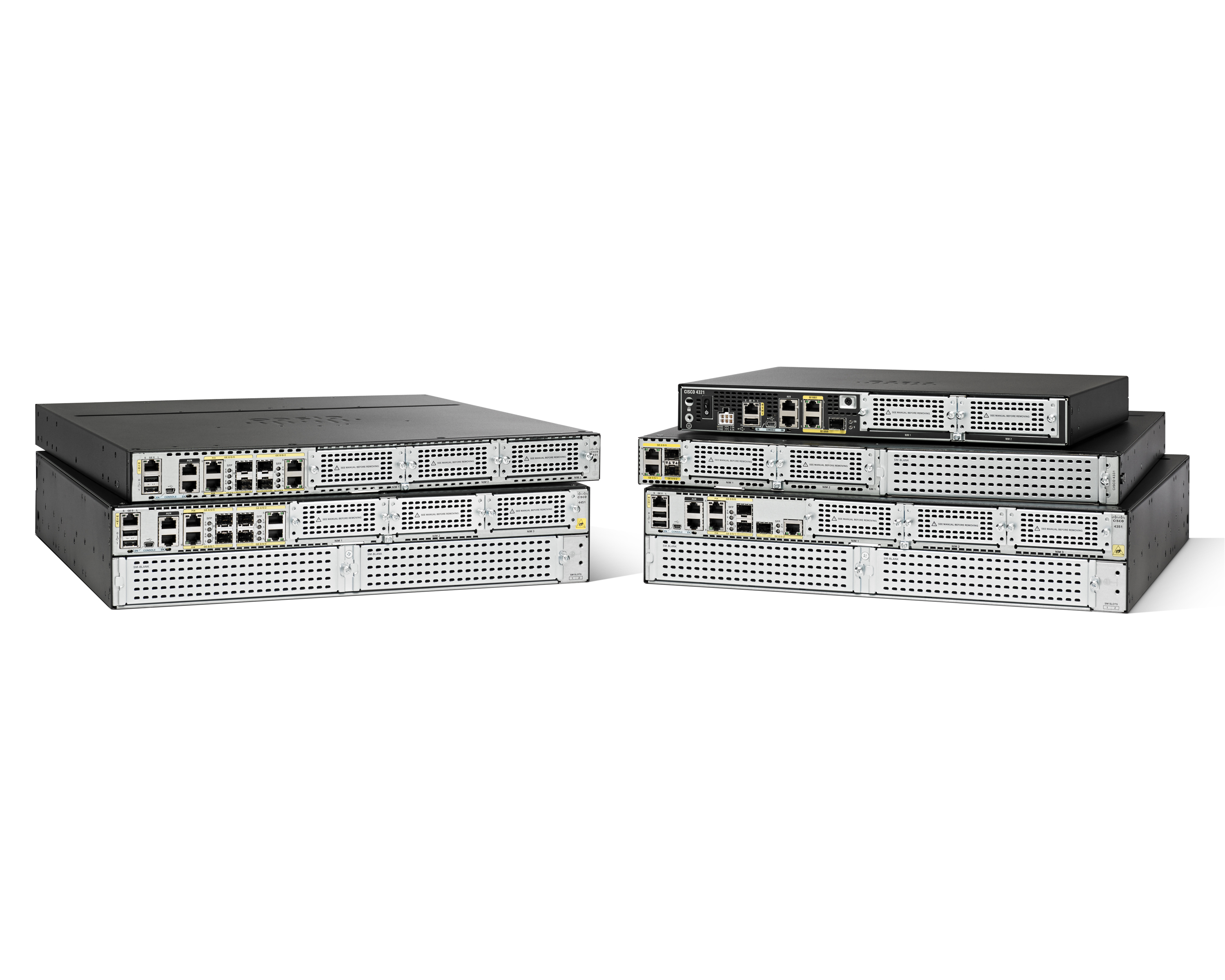

The Cisco 4000 Series is built on a multicore CPU architecture. It runs modular Cisco IOS XE Software, which allows the platform to use to full advantage a distributed multicore architecture. The architecture of the Cisco 4000 Series separates control- and data-plane operations and integrates an industry-first services plane. This design delivers full-featured integrated services up to Layer 7 at high performance, with the ability to deliver application-aware network services while maintaining a stable platform and a high level of performance during periods of heavy network traffic. - It is an application-aware platform complete with Intelligent Path Control (PfR), application visibility (NBAR2) and Network Contention Control (H/QoS). - It comes with Cisco IOS built-in security features for complete branch threat defense, such as Zone-based Firewall, FirePOWER Threat Defense, Network Address Translation (NAT), and IPSec VPN - It is a standard-based Linux virtualization platform. With Linux Virtual Container (LXC), signed network service like Snort IPS can be spin up as virtual machine any time - It is equipped with up to 2×8 integrated switch ports – a true all-in-one platform – for pop-up or micro branches where the average square footage is as little as 350-sf. - It supports IPv6 and legacy WAN connectivity, such as 3G/4G LTE, for IoT use cases such as ATM/Kiosk or industrial environments without dedicated MPLS transport
Products specifications
Attribute name | Attribute value |
---|
Weight | 8.11 lbs |
Installed SFP modules quantity | 1 |
Width | 12.7" |
Depth | 10" |
Height | 1.72" |
Antenna Type | Internal |
Product color | Black, Gray |
Mean time between failures (MTBF) | 593270 h |
Internal memory | 4 MB |
Rack capacity | 1U |
Package width | 600 D |
Package depth | 20 - 90 % |
Package height | 4.13" |
Networking standards | IEEE 802.1ag,IEEE 802.3,IEEE 802.3ah |
Ethernet LAN | Y |
Rack mounting | Y |
Ethernet LAN (RJ-45) ports | 2 |
USB ports quantity | 1 |
USB version | 2.0 |
Power consumption (typical) | 24 W |
Power source type | AC |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
DHCP client | Y |
Quality of Service (QoS) support | Y |
Operating relative humidity (H-H) | 5 - 85 % |
Non-operating altitude | 0 - 187007.9" |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 95 % |
Operating altitude | 0 - 118110.2" |
Flash memory | N |
Security algorithms | 3DES,128-bit AES,256-bit AES,DES,WDS |
Firewall | Y |
Ethernet WAN | Y |
