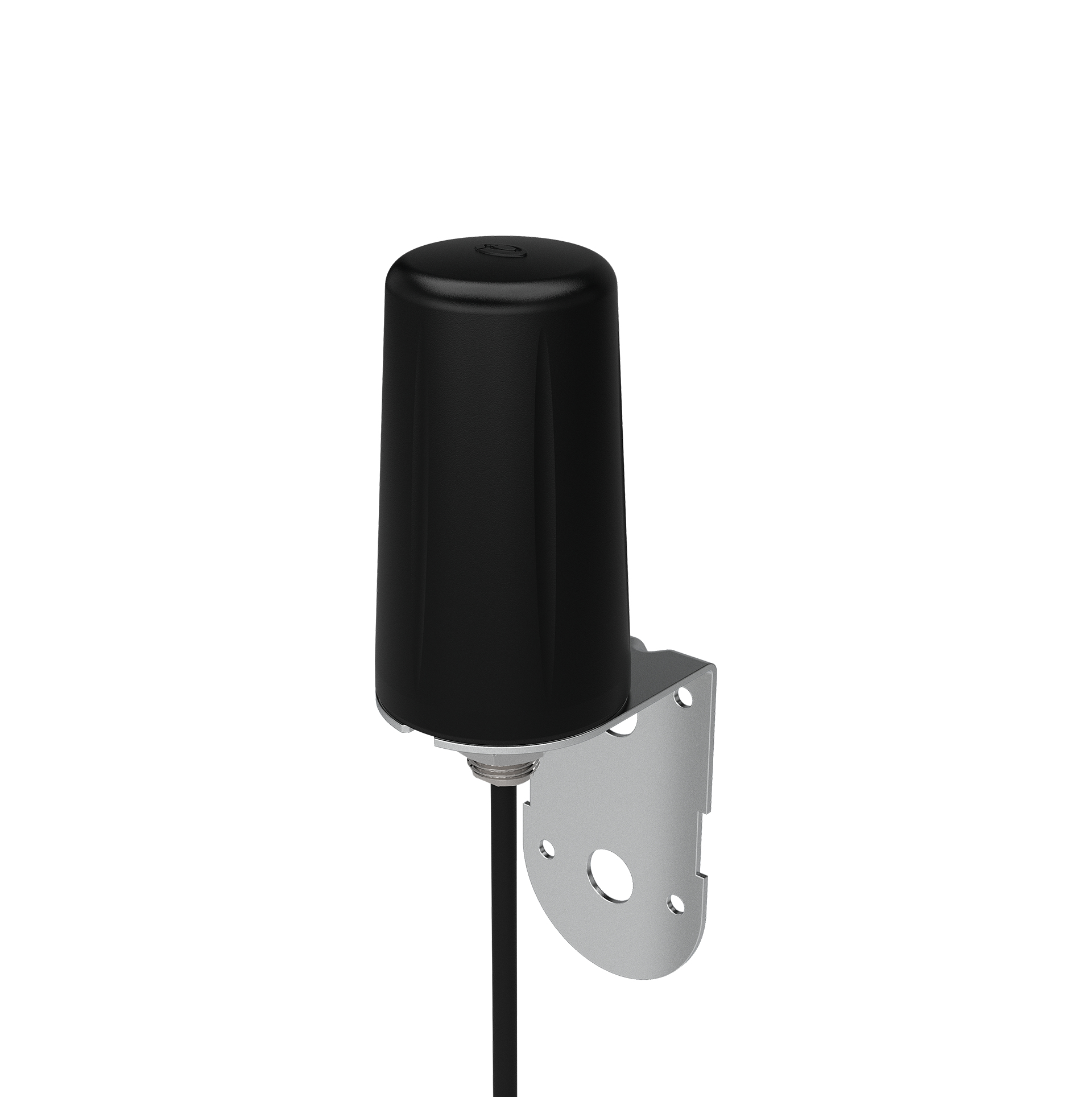

Panorama Antennas BRACKET MOUNT ANTENNA network antenna Omni-directional antenna SMA 5 dBi

Panorama Antennas BRACKET MOUNT ANTENNA. Antenna gain level (max): 5 dBi, Frequency band: 0.617 - 6 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Polarization: Vertical polarization. Height: 6.46" (164 mm), Diameter: 1.89" (4.8 cm)

Manufacturers: Panorama Antennas , PANORAMA ANTENNAS, INC.

SKU: 5818716

Manufacturer part number: B4BE-6-60-2SP

UPC: 5055416034243

MSRP: $35.33

Price: $30.92

Qty:

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.

The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.

The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G and 5G applications the world over.

The antenna range is supplied in two variants the B4BE-6-60 is fitted with 5mm double shielded CS29 cable and the B4BEE-6-60 variant is fitted with 2.8mm RG174 cable,

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Height	6.46"
Mounting	Universal
Diameter	1.89"
Housing Material	Acrylonitrile styrene acrylate (ASA), Aluminum
Antenna Type	Omni-directional antenna
Cable Length	78.7"
Polarization	Vertical polarization
Voltage Standing Wave Ratio (VSWR)	2.5:1
Technical details
Product color	Black
Features
International Protection (IP) code	IP66
Impedance	50 Ω
Wireless LAN features
Frequency band	0.617 - 6 GHz
Antenna
Antenna gain level (max)	5 dBi
Antenna connector type	SMA
