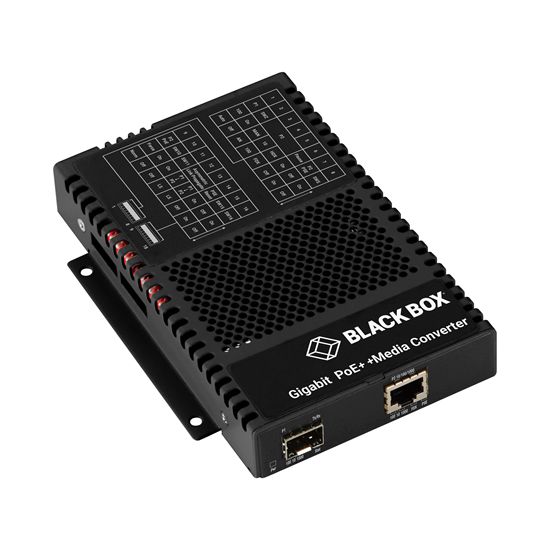

Black Box LGC5600A network media converter 1000 Mbit/s Multi-mode, Single-mode 1
Black Box LGC5600A network media converter 1000 Mbit/s Multi-mode, Single-mode 1
Black Box LGC5600A network media converter 1000 Mbit/s Multi-mode, Single-mode 2
Black Box LGC5600A network media converter 1000 Mbit/s Multi-mode, Single-mode 3

Black Box LGC5600A network media converter 1000 Mbit/s Multi-mode, Single-mode

Black Box LGC5600A. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 100Base-X, 1000Base-X. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 474000 h. Product color: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.62 A
Manufacturer: Black Box
SKU: 6223687
Manufacturer part number: LGC5600A
UPC: 0822088149880
MSRP: $1,277.45
$1,166.90
Convert 10/100/1000BASE-T to 1000BASE-X SFP with Ease
If you need to extend your copper network with fiber, look no further. PoE++ Media Converter easily converts 10/100/1000BASE-T to 1000BASE-X or 100BASE-X SFP.

Power-over-Ethernet Support
With full Power-over-Ethernet (PoE) support, this media converter can function as a PoE injector. It's classified as Power Sourcing Equipment (PSE) and can provide power to one or two powered devices (PDs) using standard UTP cables. The converter provides up to 60 watts of power per RJ-45 port, allowing it to power cameras, wireless access points, and more.

Configurable Features
Changeable features include link modes and a PoE power reset function that enables a PD device to be reinitialized remotely, eliminating the need for costly trips to PD sites.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

Works with a Variety of Fiber
PoE++ Media Converter supports fixed-fiber connectors and 100-Mbps or 1000-Mbps SFP transceiver receptacles. It also supports SFPs for multimode and single-mode dual fiber as well as single-mode single fiber in standard and CWDM wavelengths.

Plenty of Mounting Options
This compact standalone media converter can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. It can also be mounted on a 1U 19-inch rackmount shelf.



  • 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
  • IEEE 802.3bt compliant, 60-W PoE++
  • Backwards compatible with 802.3af and 802.3at
  • Supports 100BASE-X or 1000BASE-X SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • Configurable PoE power reset
Convert 10/100/1000BASE-T to 1000BASE-X SFP with Ease
If you need to extend your copper network with fiber, look no further. PoE++ Media Converter easily converts 10/100/1000BASE-T to 1000BASE-X or 100BASE-X SFP.

Power-over-Ethernet Support
With full Power-over-Ethernet (PoE) support, this media converter can function as a PoE injector. It's classified as Power Sourcing Equipment (PSE) and can provide power to one or two powered devices (PDs) using standard UTP cables. The converter provides up to 60 watts of power per RJ-45 port, allowing it to power cameras, wireless access points, and more.

Configurable Features
Changeable features include link modes and a PoE power reset function that enables a PD device to be reinitialized remotely, eliminating the need for costly trips to PD sites.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

Works with a Variety of Fiber
PoE++ Media Converter supports fixed-fiber connectors and 100-Mbps or 1000-Mbps SFP transceiver receptacles. It also supports SFPs for multimode and single-mode dual fiber as well as single-mode single fiber in standard and CWDM wavelengths.

Plenty of Mounting Options
This compact standalone media converter can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. It can also be mounted on a 1U 19-inch rackmount shelf.



  • 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
  • IEEE 802.3bt compliant, 60-W PoE++
  • Backwards compatible with 802.3af and 802.3at
  • Supports 100BASE-X or 1000BASE-X SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • Configurable PoE power reset

Products specifications

Attribute name Attribute value
Width 4.49"
Depth 5.98"
Height 0.984"
Weight 17.6 oz
Compliance certificates UL, CE, RoHS, REACH
Suitable for rail mounting Yes
Wall/direct mounting Yes
Design
Certification UL; CE; FCC Class A; RoHS; WEEE; REACH
Internal No
DIN rail mounting Yes
Technical details
Product color Black
Flow control support Yes
Features
Fiber mode structure Multi-mode, Single-mode
Data transfer rate 1000 Mbit/s
Input current 0.62 A
Mean time between failures (MTBF) 474000 h
Packaging content
AC adapter included Yes
Performance
Maximum data transfer rate 1000 Mbit/s
Fiber optic connector SFP
Duplex system Full, Half
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Fiber ports quantity 1
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
DC-in jack Yes
Power over Ethernet (PoE) ports quantity 1
Power
Input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
External power adapter Yes
Total Power over Ethernet (PoE) budget 60 W
Network
Cable types supported Cat5
Converter input interface 10Base-T, 100Base-T, 1000Base-T
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames support Yes
Auto-negotiation Yes
Jumbo frames 10240
Converter output interface 100Base-X, 1000Base-X
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 5 - 95 %
Operating altitude 3937 - 157480.3"
Optical fiber
Fiber ethernet cabling technology 100BASE-X, 1000BASE-X
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
*
*
*
