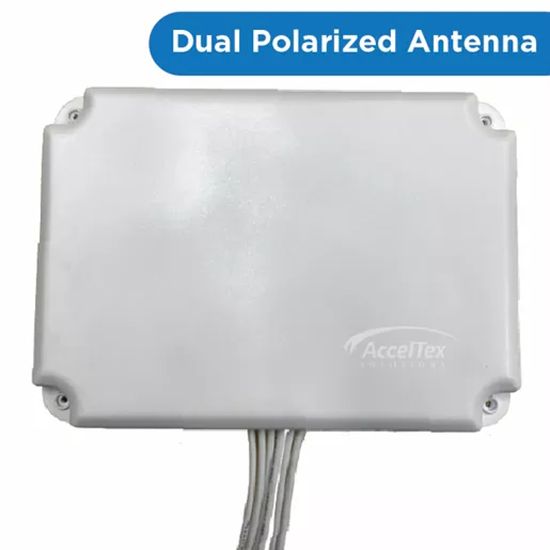

ATS-01120 (former catalog number ATS-OP-245-7D-6NP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Products specifications
| Attribute name |
Attribute value |
|
Mounting
|
Wall |
|
Polarization
|
Horizontal/Vertical polarization |
|
Survival wind speed
|
216 km/h |
|
Housing Material
|
Fiberglass |
|
Antenna Type
|
Omni-directional antenna |
|
Cable Type
|
RG402 Plen |
|
Product color
|
Gray |
|
Isolation
|
30 dB |
|
Compatible products
|
Arista O-235E |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Networking standards
|
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n |
|
Power source type
|
DC |
|
Power consumption (max)
|
20 W |
|
Operating temperature (T-T)
|
-40 - 65 °C |
|
Frequency band
|
4.9-5.85 GHz |
|
Antenna gain level (max)
|
7 dBi |
|
Antenna connector type
|
N-type |
