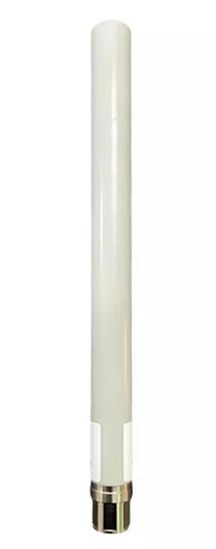

ATS-01057 (former catalog number ATS-OO-245-57-1NP-IC-W). The AccelTex Solutions Dual-Band 5/7 dBi ABS omnidirectional antenna is designed for indoor and outdoor environments in the 2.4GHz and 5GHz wireless local area networks.
Products specifications
| Attribute name |
Attribute value |
|
Mounting
|
Wall |
|
Polarization
|
Vertical polarization |
|
Survival wind speed
|
216 km/h |
|
Housing Material
|
Fiberglass |
|
Antenna Type
|
Omni-directional antenna |
|
Cable Type
|
ATS-200 |
|
Product color
|
Gray |
|
Isolation
|
30 dB |
|
Compatible products
|
Arista O-235E |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Networking standards
|
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n |
|
Power source type
|
DC |
|
Power consumption (max)
|
20 W |
|
Operating temperature (T-T)
|
-40 - 60 °C |
|
Frequency band
|
5.1-5.9 GHz |
|
Antenna gain level (max)
|
7 dBi |
|
Antenna connector type
|
N-type |
