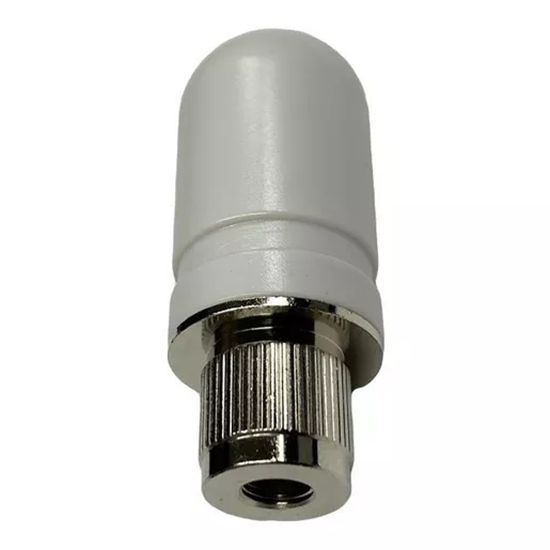

ATS-00855 (former catalog number ATS-IDSD-245-23-1RPSP-IC). The AccelTex Solutions dual band indoor stubby duck antenna is a perfect compliment to any enterprise-class AP to achieve desired coverage in your indoor space. The antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz and attaches directly to any enterprise-class AP. This highly versatile antenna is suitable for a broad range of indoor applications where a higher gain external antenna is not needed.
Products specifications
| Attribute name |
Attribute value |
|
Mounting
|
Wall/Pole |
|
Polarization
|
Vertical polarization |
|
Survival wind speed
|
216 km/h |
|
Housing Material
|
Fiberglass |
|
Antenna Type
|
Omni-directional antenna |
|
Cable Type
|
ATS-200 |
|
Product color
|
Gray |
|
Isolation
|
30 dB |
|
Compatible products
|
Arista C-230E |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Networking standards
|
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n |
|
Power source type
|
DC |
|
Power consumption (max)
|
50 W |
|
Operating temperature (T-T)
|
-40 - 70 °C |
|
Frequency band
|
4.9-5.85 GHz |
|
Antenna gain level (max)
|
3.5 dBi |
|
Antenna connector type
|
N-type |
