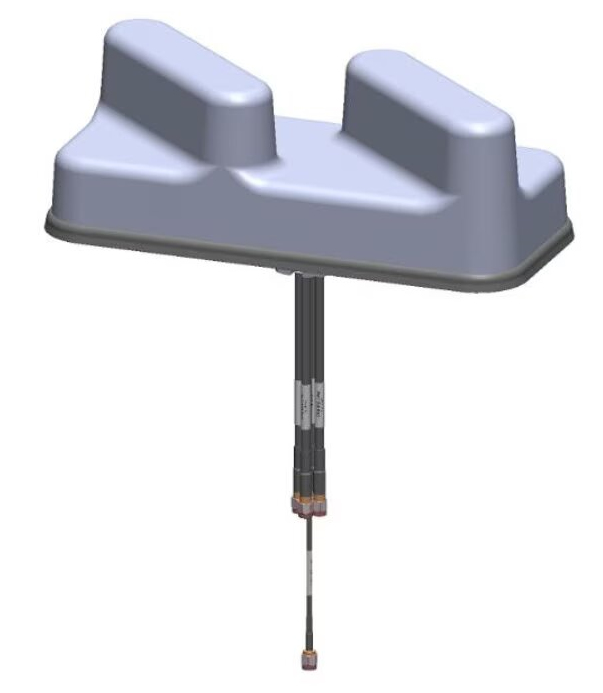

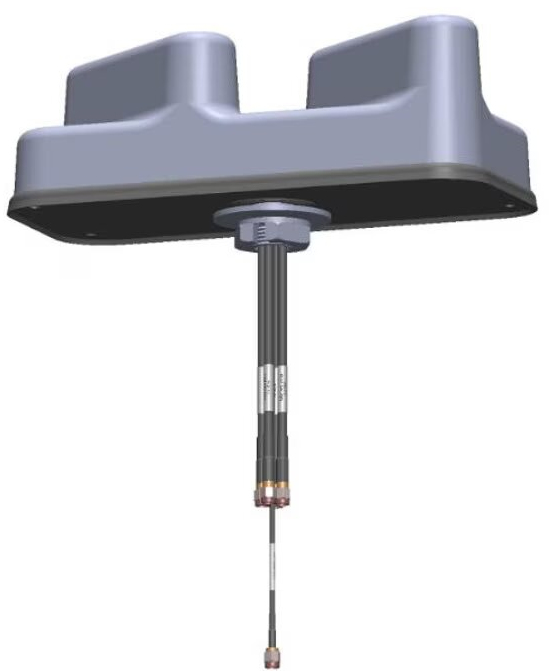

This section describes the technical specifications and installation instructions for the Cisco Multi-element, 5-in-1, 5G (FR1)/LTE/GNSS (ANT-5-5G4G1-O), hereafter referred to as the antenna. The antenna features:
- Antenna Type - Multi-band elements on ground-plane
- IP67
- RoHS Compliant
- 4x Cellular (4G/5G)
- 1x GNSS
Products specifications
| Attribute name |
Attribute value |
|
Width
|
4.86" |
|
Depth
|
10.8" |
|
Height
|
3.63" |
|
Weight
|
30.3 oz |
|
Housing Material
|
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
|
Antenna Type
|
Omni-directional antenna |
|
Voltage Standing Wave Ratio (VSWR)
|
2.5:1 |
|
Purpose
|
Indoor |
|
Impedance
|
50 Ω |
|
Quantity per pack
|
1 pc(s) |
|
Connector gender
|
Male |
|
Operating temperature (T-T)
|
-40 - 85 °C |
|
Antenna connector type
|
SMA |
