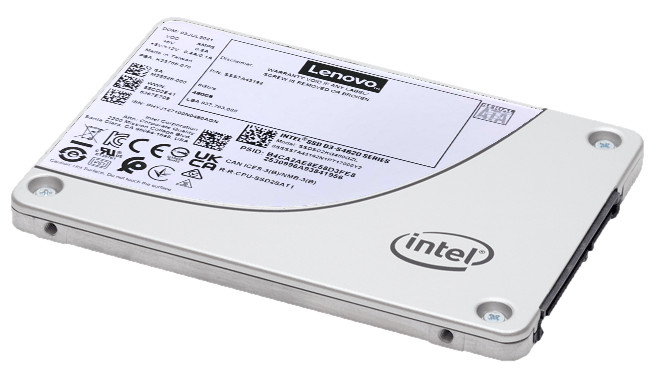

The ThinkSystem S4520 Mixed Use SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
10.1" |
|
Depth
|
7.6" |
|
Height
|
3.74" |
|
Weight
|
17.1 oz |
|
SSD capacity
|
480 GB |
|
Non-operating shock
|
1000 G |
|
Non-operating vibration
|
3.13 G |
|
Uncorrectable Bit Error Rate (UBER)
|
< 1 per 10^17 bits read |
|
Endurance rating
|
4.2 PB |
|
Sequential latency - read (up to)
|
36 µs |
|
Sequential latency - write (up to)
|
36 µs |
|
Random latency - read (up to)
|
103 µs |
|
Random latency - write (up to)
|
43 µs |
|
Drive writes per day (DWPD)
|
4.7 |
|
Certification
|
FCC Title 47, Part 15B, Class B
EN-55035:2017
EN-55022:2006
EN-55032:2012
Low Voltage Directive (LVD) 2014/35/EU
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
UL 60950-1, 2nd Edition, 2014-10-14
CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010
UL/CSA 62368-1, 2nd Edition
AS/NZ CISPR 32:2015
AS/NZ CISPR 22:2009 +A1:2010
Taiwan BSMI EMC standard CNS 13438
Korea KCC Article 11.1
Morocco Decree # 2574-14 (EMC)
Canada ICES-003
Japan VCCI
China EFUP |
|
Component for
|
Server |
|
Data transfer rate
|
6 Gbit/s |
|
Mean time between failures (MTBF)
|
2000000 h |
|
Memory type
|
TLC 3D NAND |
|
Random read (4KB)
|
85000 IOPS |
|
Random write (4KB)
|
48000 IOPS |
|
SSD form factor
|
3.5" |
|
Interface
|
Serial ATA III |
|
Power consumption (write)
|
3 W |
|
Operating temperature (T-T)
|
0 - 70 °C |
|
Storage relative humidity (H-H)
|
5 - 95 % |
|
Operating shock
|
1000 G |
|
Operating vibration
|
2.17 G |
